Used used motor grader For Sale

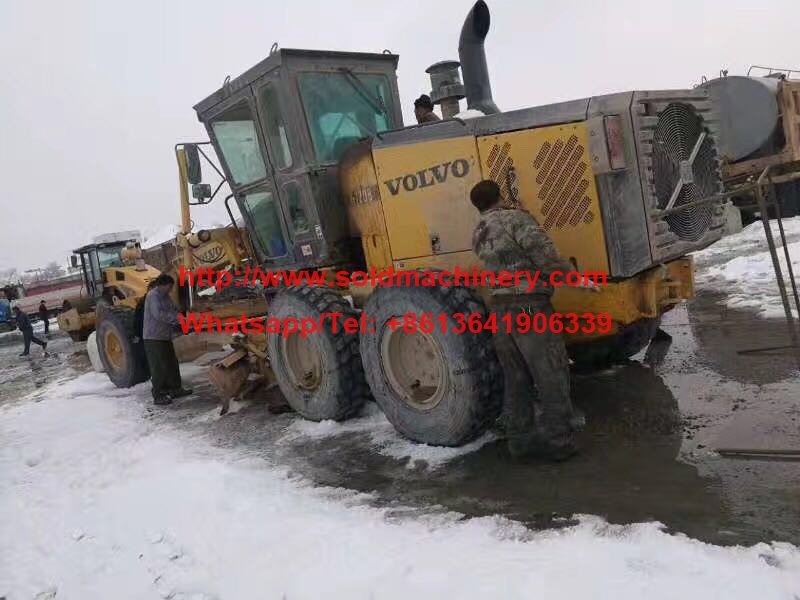

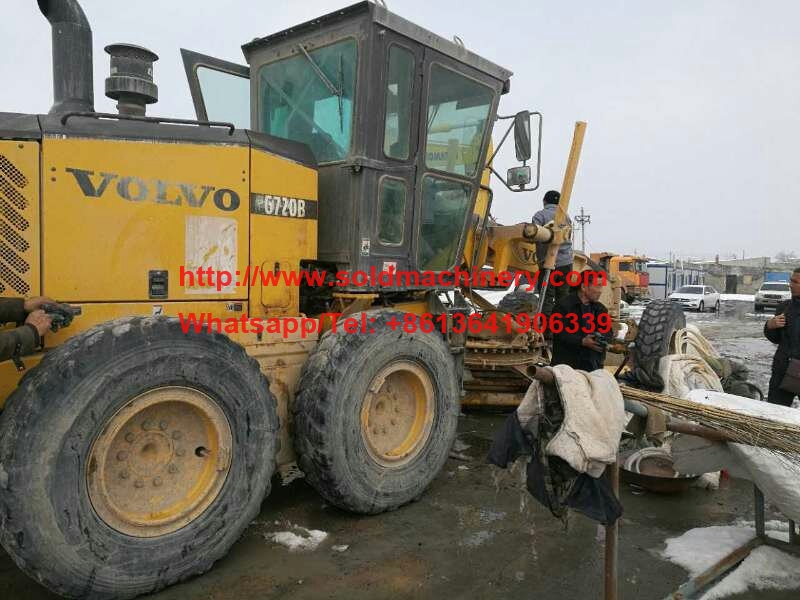

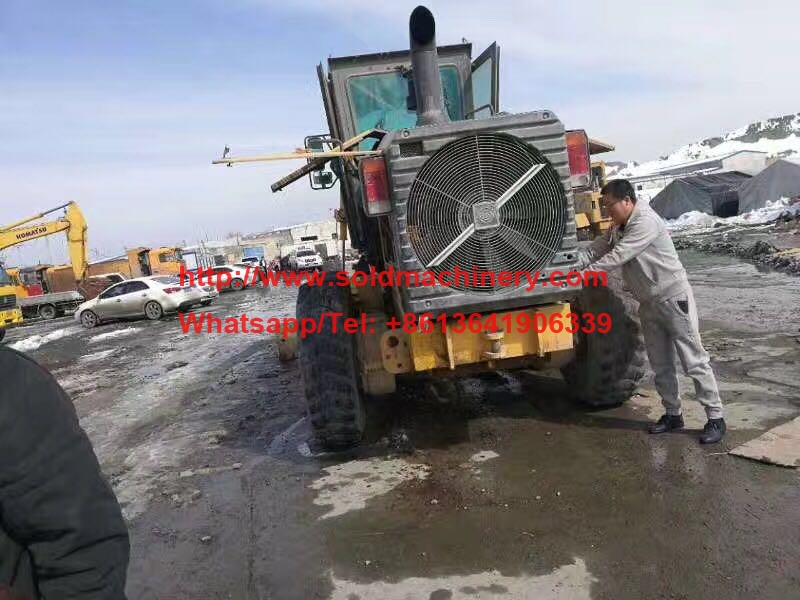

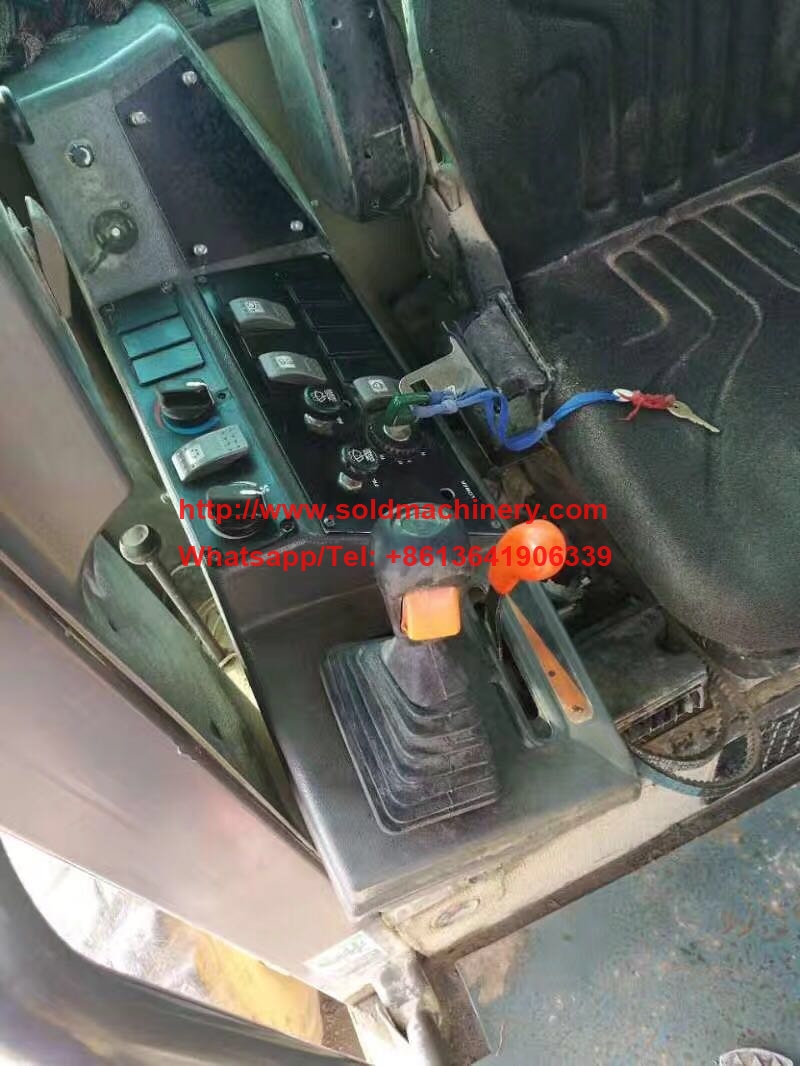

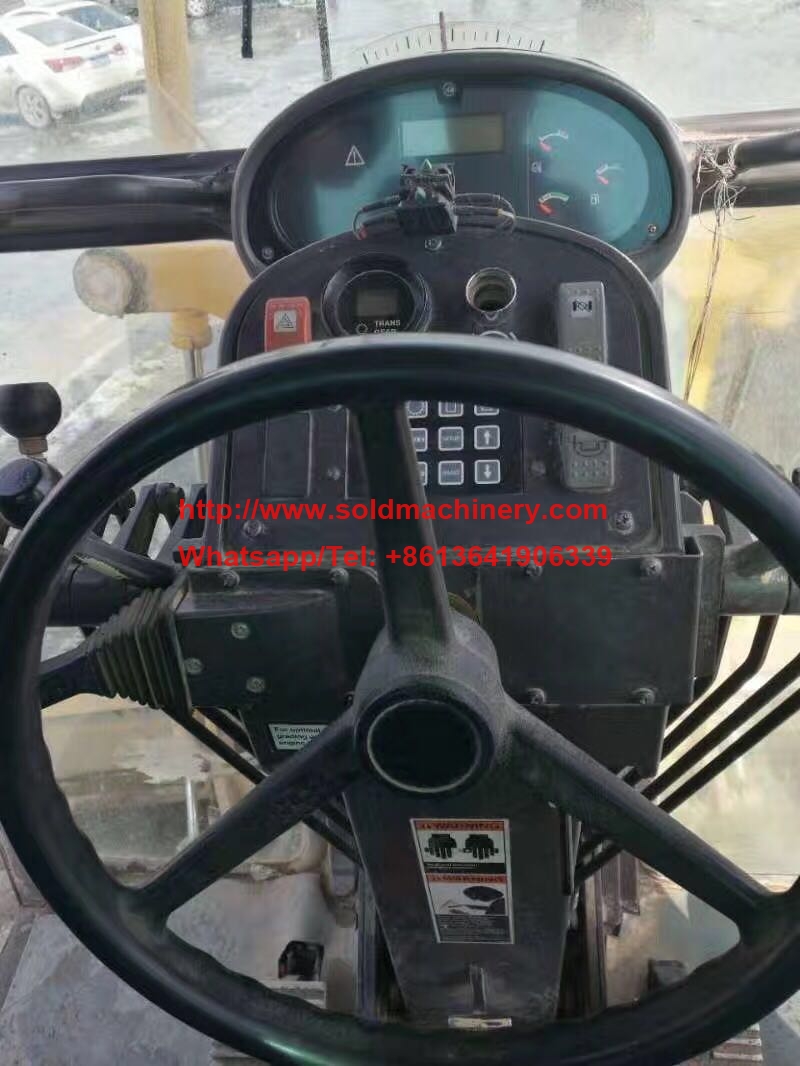

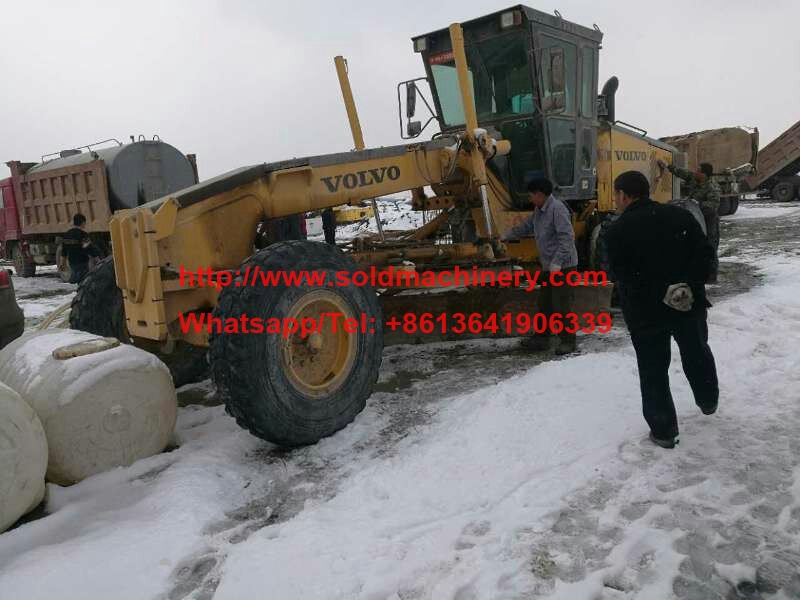

Pictures available:

Details:
  • Category:  Grader
  • Brand:  Volvo
  • Model:  G720B
  • Year:  2015
  • SN:
  • price($):  contact us

Description


query this machine
print this offer


Specification (For reference only)

Engine
Make Caterpillar
Power Measured
 2200 rpm
Net Power Gear
135 hp 100.7 kw
Number of Cylinders 6
Max Power 135 hp 100.7 kw
Displacement 640.7 cu in 10.5 L
Operational
Std Operation Weight - Front Axle 7870.5 lb 3570 kg
Std Operation Weight - Rear Axle 20128.2 lb 9130 kg
Std Operation Weight - Total 27998.7 lb 12700 kg
Max Operation Weight - Front Axle 9986.9 lb 4530 kg
Max Operation Weight - Rear Axle 21605.3 lb 9800 kg
Max Operation Weight - Total 31592.2 lb 14330 kg
Fuel Capacity 74.8 gal 283 L
Oil System Fluid Capacity 7.7 gal 29 L
Cooling System Fluid Capacity 12.4 gal 47 L
Hydrauilc System Fluid Capacity 20.1 gal 76 L
Transmission Fluid Capacity 23 gal 87 L
Tandem Case Fluid Capacity (each) 16.9 gal 64 L
Operating Voltage 24 V
Alternator Supplied Amperage 19 amps
Transmission
Type Cat-built direct drive power shift
Number of Gears - Forward 6
Number of Gears - Reverse 6
Max Speed - Forward 25.5 mph 41 km/h
Max Speed - Reverse 25.5 mph 41 km/h
Steering
Articulation L/R 50 degrees
Turning Radius 24 ft in 7.3 m
Front Axle
Wheel Lean 18 degrees
Oscillation - Total 32 degrees
Ground Clearance 2 ft in 610 mm
Hydraulic System
Pump Type closed-center, constant-pressure system w/ variable displacement piston
Pump Flow 51 gal/min 193 L/min
Relief Valve Pressure 2150 psi 14823.7 kPa
Moldboard
Moldboard Width 12 ft in 3650 mm
Moldboard Height 24 in 610 mm
Moldboard Thickness 0.87 in 22 mm
Max Depth of Cut 17.7 in 450 mm
Side Shift Left 26.4 in 670 mm
Side Shift Right 20.5 in 520 mm
Circle
Diameter 60.2 in 1530 mm
Rotation 360 degrees
Max Reach Outside Tires - Left 72 in 1830 mm
Max Reach Outside Tires - Right 73.6 in 1870 mm
Max Lift Above Ground 17.2 in 438 mm
Blade Tip Angle - Front 90 degrees
Blade Tip Angle - Rear 90 degrees
