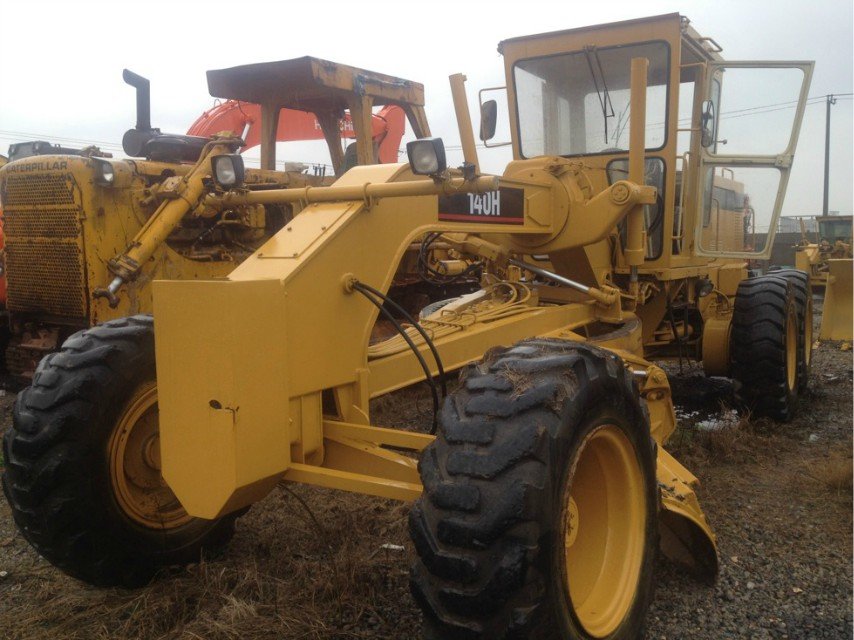

Used Caterpillar CAT 140H motor grader For Sale

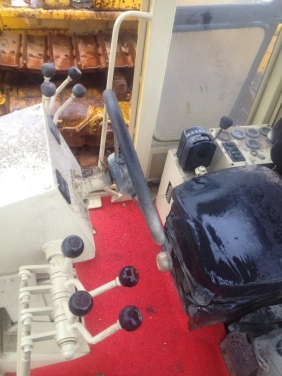

Pictures available:

Details:
  • Category:  Grader
  • Brand:  CATERPILLAR
  • Model:  140H
  • Year:
  • SN:
  • price($):  contact us

Description

brand:CATERPILLAR

model: CAT140h

hours: 3500

good working condition, ready for sale.

with good price: CONTACT US.


print this offer


Specification (For reference only)

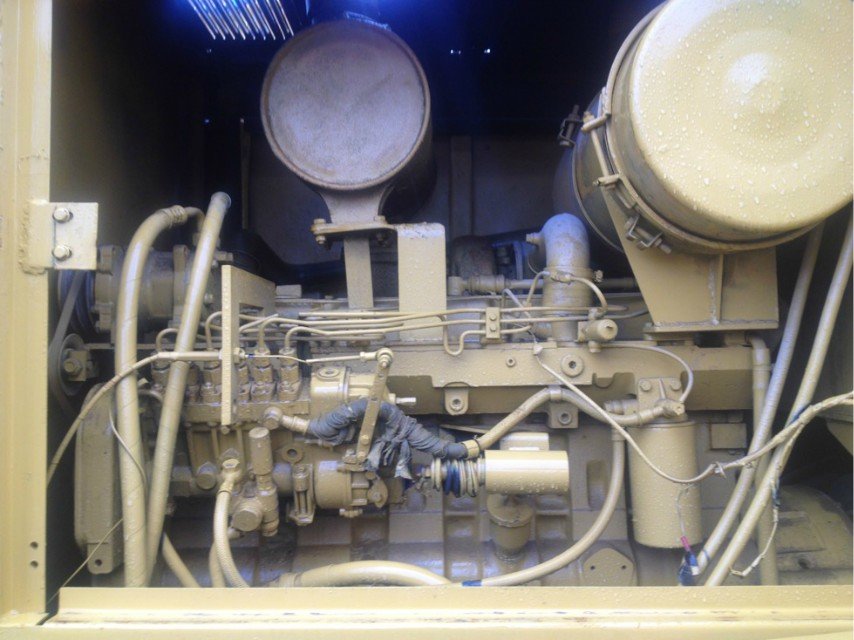

Engine
Make Caterpillar
Model 3176C DITA ATAAC VHP
Net Power Gear 1-2 165 hp 123 kw
Net Power Gear 3-4 185 hp 138 kw
Power Measured @ 2000 rpm
Net Power Gear 5-6 185 hp 138 kw
Number of Cylinders 6
Net Power Gears 7-8 185 hp 138 kw
Max Power 185 hp 138 kw
Displacement 629 cu in 10.3 L
Operational
Std Operation Weight - Front Axle 9123 lb 4138 kg
Std Operation Weight - Rear Axle 23234 lb 10539 kg
Std Operation Weight - Total 32357 lb 14677 kg
Max Operation Weight - Front Axle 16733 lb 7590 kg
Max Operation Weight - Rear Axle 30139 lb 13671 kg
Max Operation Weight - Total 46872 lb 21261 kg
Fuel Capacity 105 gal 397 L
Cooling System Fluid Capacity 10 gal 38 L
Hydrauilc System Fluid Capacity 20.8 gal 80 L
Rear Diff/Final Drive Fluid Capacity 12.4 gal 47 L
Circle Gearbox Fluid Capacity 1.8 gal 7 L
Tandem Case Fluid Capacity (each) 16.9 gal 64 L
Transmission
Type direct drive, power shift
Number of Gears - Forward 8
Number of Gears - Reverse 6
Max Speed - Forward 27.4 mph 44 km/h
Max Speed - Reverse 21.6 mph 34.7 km/h
Steering
Articulation L/R 20 degrees
Turning Radius 24.6 ft in 7.5 m
Front Axle
Wheel Lean 18 degrees
Oscillation - Total 32 degrees
Ground Clearance 2 ft in 600 mm
Hydraulic System
Pump Type axial piston
Pump Flow 54.4 gal/min 206 L/min
Relief Valve Pressure 3500 psi 24150 kPa
Moldboard
Moldboard Width 12 ft in 3658 mm
Moldboard Height 24 in 610 mm
Moldboard Thickness 0.87 in 22 mm
Max Depth of Cut 28.1 in 715 mm
Side Shift Left 20.6 in 524 mm
Side Shift Right 26 in 660 mm
Blade Pull at Max Weight 42184 lb 19135 kg
Blade Down Pressure 28697.6 lb 13017 kg
Circle
Diameter 60.2 in 1530 mm
Shift Left 27.4 in 695 mm
Shift Right 28.7 in 728 mm
Max Reach Outside Tires - Left 74.6 in 1896 mm
Max Reach Outside Tires - Right 77.9 in 1978 mm
Max Lift Above Ground 18.9 in 480 mm
Blade Tip Angle - Front 40 degrees
Blade Tip Angle - Rear 5 degrees
