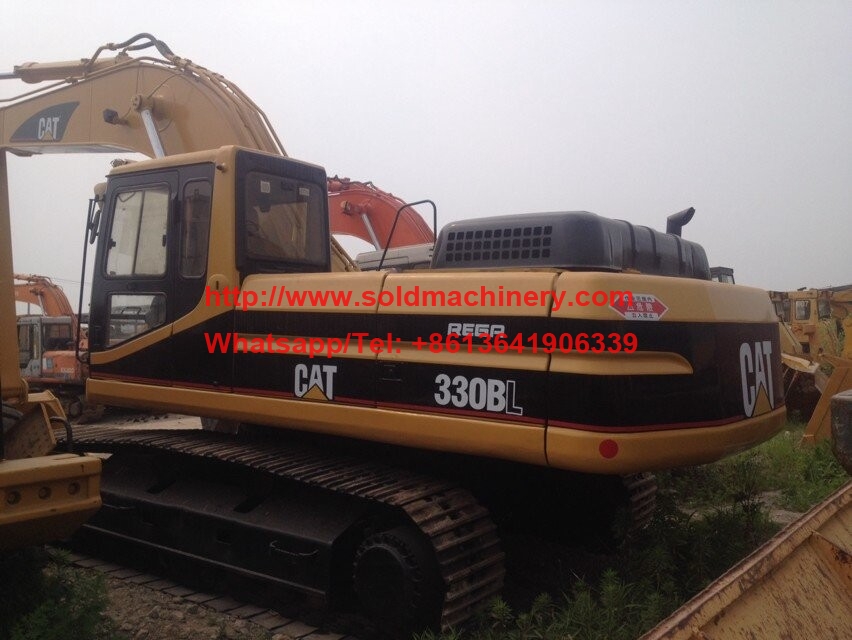

Used CAT330BL For Sale

Details:

Description

Category : Crawl Excavator

Brand : Caterpillar

Model : 330BL

Year : 1998

This machine have good engine, good pump,good biucket.with good workding conditions ,Ready for sale

Specification (For reference only)

Engine
Make	Caterpillar
Model	3306TA
Gross Power	236 hp	176 kw
Net Power	222 hp	165.5 kw
Power Measured @	1800 rpm
Displacement	640.7 cu in	10.5 L
Aspiration	Turbocharged and Aftercooled
Number of Cylinders	6
Operational
Operating Weight	74300 lb	33701.9 kg
Fuel Capacity	147.9 gal	560 L
Cooling System Fluid Capacity	11.9 gal	45 L
Hydrauilc System Fluid Capacity	105.7 gal	400 L
Engine Oil Capacity	7.9 gal	30 L
Swing Drive Fluid Capacity	4 gal	15 L
Operating Voltage	24 V
Alternator Supplied Amperage	50 amps
Hydraulic System Relief Valve Pressure	4980 psi	34335.9 kPa
Hydraulic Pump Flow Capacity	126.8 gal/min	480 L/min
Swing Mechanism
Swing Torque	78200 lb ft	106025 Nm

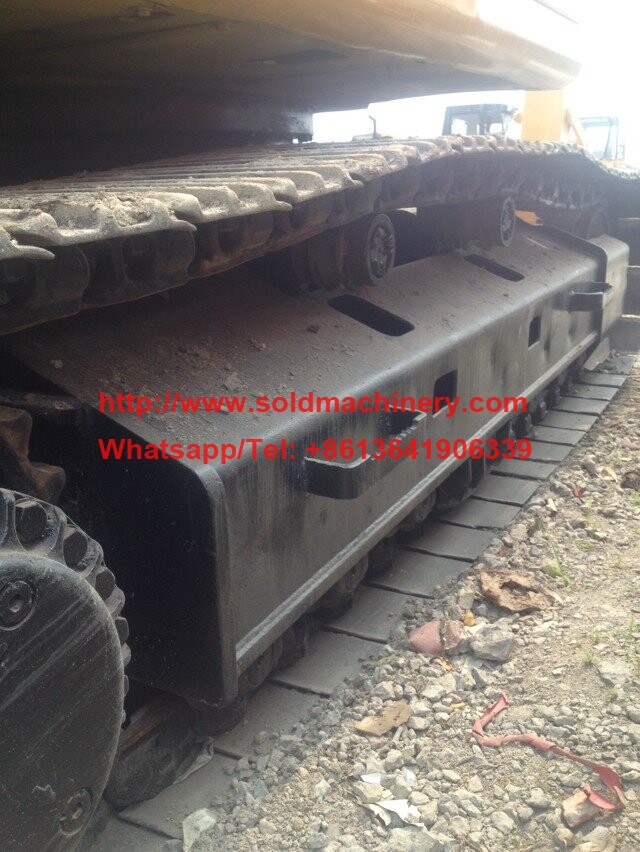

Undercarriage
Shoe Size	29.5 in	750 mm
Max Travel Speed	2.9 mph	4.6 km/h
Drawbar Pull	60250 lb	268 kN
Track Gauge	8.5 ft in	2590 mm
Buckets
Reference Bucket Capacity	2 yd3	1.5 m3
Minimum Bucket Capacity	1.7 yd3	1.3 m3
Maximum Bucket Capacity	2.8 yd3	2.1 m3
