Used Caterpillar 12G Grader For Sale

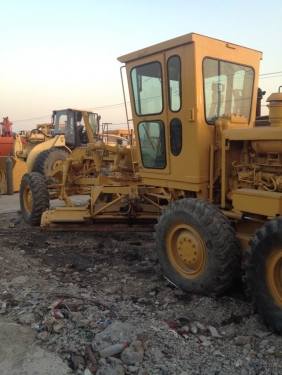

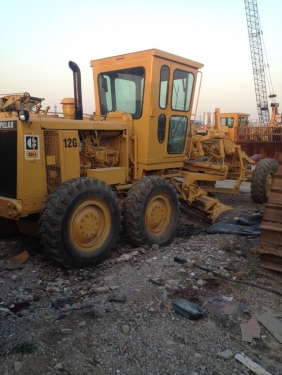

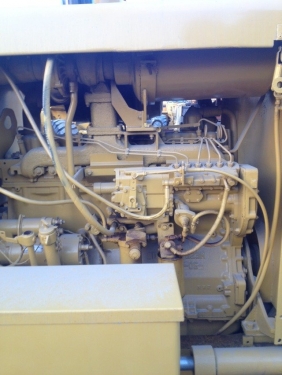

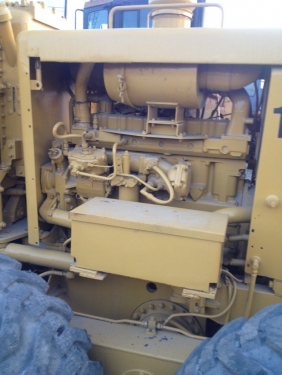

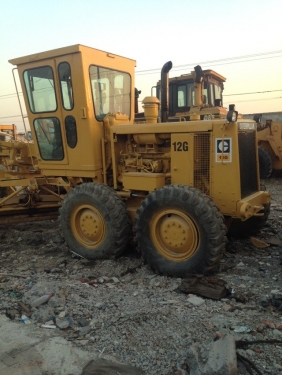

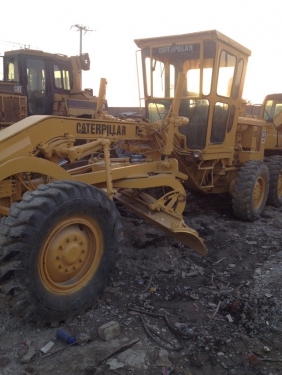

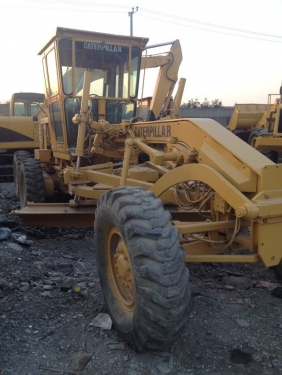

Pictures available:
Details:
- Category: Grader
- Brand: CATERPILLAR
- Model: 12G
- Year: 1995
- SN: 61M*******
- price($): contact us
Description
Cat : Grader
Brand : Caterpillar
Model :Cat 12G
This machine is in good working conditions.
Specification (For reference only)
| Engine | ||
| Make | Caterpillar | |
|
Power Measured |
2200 rpm | |
|
Net Power Gear |
135 hp | 100.7 kw |
| Number of Cylinders | 6 | |
| Max Power | 135 hp | 100.7 kw |
| Displacement | 640.7 cu in | 10.5 L |
| Operational | ||
| Std Operation Weight - Front Axle | 7870.5 lb | 3570 kg |
| Std Operation Weight - Rear Axle | 20128.2 lb | 9130 kg |
| Std Operation Weight - Total | 27998.7 lb | 12700 kg |
| Max Operation Weight - Front Axle | 9986.9 lb | 4530 kg |
| Max Operation Weight - Rear Axle | 21605.3 lb | 9800 kg |
| Max Operation Weight - Total | 31592.2 lb | 14330 kg |
| Fuel Capacity | 74.8 gal | 283 L |
| Oil System Fluid Capacity | 7.7 gal | 29 L |
| Cooling System Fluid Capacity | 12.4 gal | 47 L |
| Hydrauilc System Fluid Capacity | 20.1 gal | 76 L |
| Transmission Fluid Capacity | 23 gal | 87 L |
| Tandem Case Fluid Capacity (each) | 16.9 gal | 64 L |
| Operating Voltage | 24 V | |
| Alternator Supplied Amperage | 19 amps | |
| Transmission | ||
| Type | Cat-built direct drive power shift | |
| Number of Gears - Forward | 6 | |
| Number of Gears - Reverse | 6 | |
| Max Speed - Forward | 25.5 mph | 41 km/h |
| Max Speed - Reverse | 25.5 mph | 41 km/h |
| Steering | ||
| Articulation L/R | 50 degrees | |
| Turning Radius | 24 ft in | 7.3 m |
| Front Axle | ||
| Wheel Lean | 18 degrees | |
| Oscillation - Total | 32 degrees | |
| Ground Clearance | 2 ft in | 610 mm |
| Hydraulic System | ||
| Pump Type | closed-center, constant-pressure system w/ variable displacement piston | |
| Pump Flow | 51 gal/min | 193 L/min |
| Relief Valve Pressure | 2150 psi | 14823.7 kPa |
| Moldboard | ||
| Moldboard Width | 12 ft in | 3650 mm |
| Moldboard Height | 24 in | 610 mm |
| Moldboard Thickness | 0.87 in | 22 mm |
| Max Depth of Cut | 17.7 in | 450 mm |
| Side Shift Left | 26.4 in | 670 mm |
| Side Shift Right | 20.5 in | 520 mm |
| Circle | ||
| Diameter | 60.2 in | 1530 mm |
| Rotation | 360 degrees | |
| Max Reach Outside Tires - Left | 72 in | 1830 mm |
| Max Reach Outside Tires - Right | 73.6 in | 1870 mm |
| Max Lift Above Ground | 17.2 in | 438 mm |
| Blade Tip Angle - Front | 90 degrees | |
| Blade Tip Angle - Rear | 90 degrees | |
