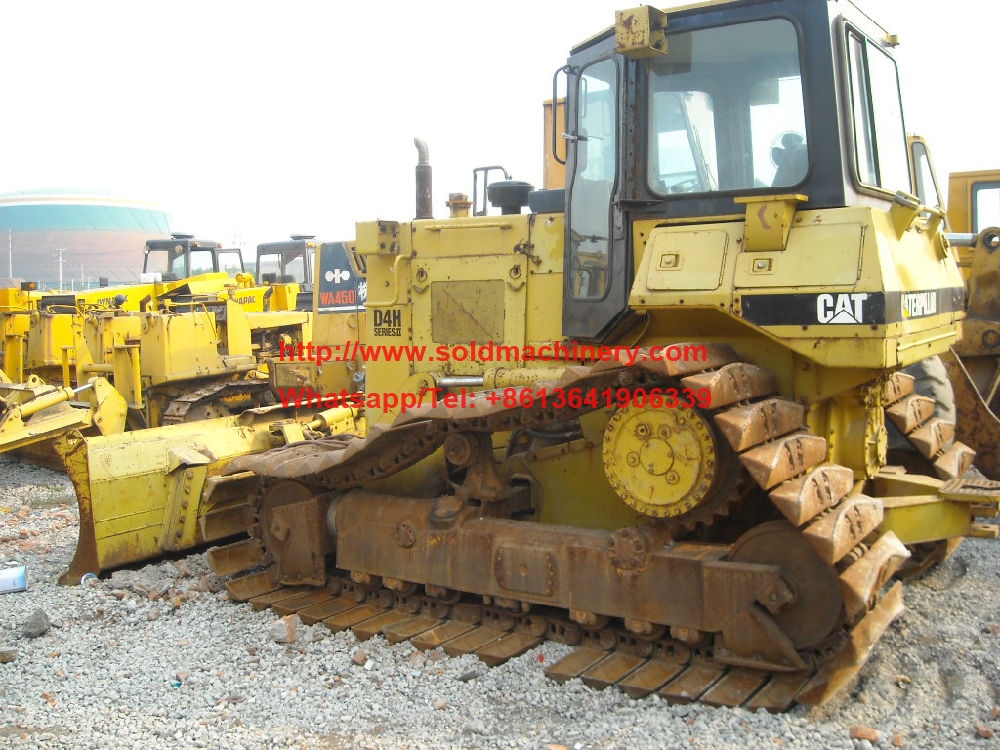

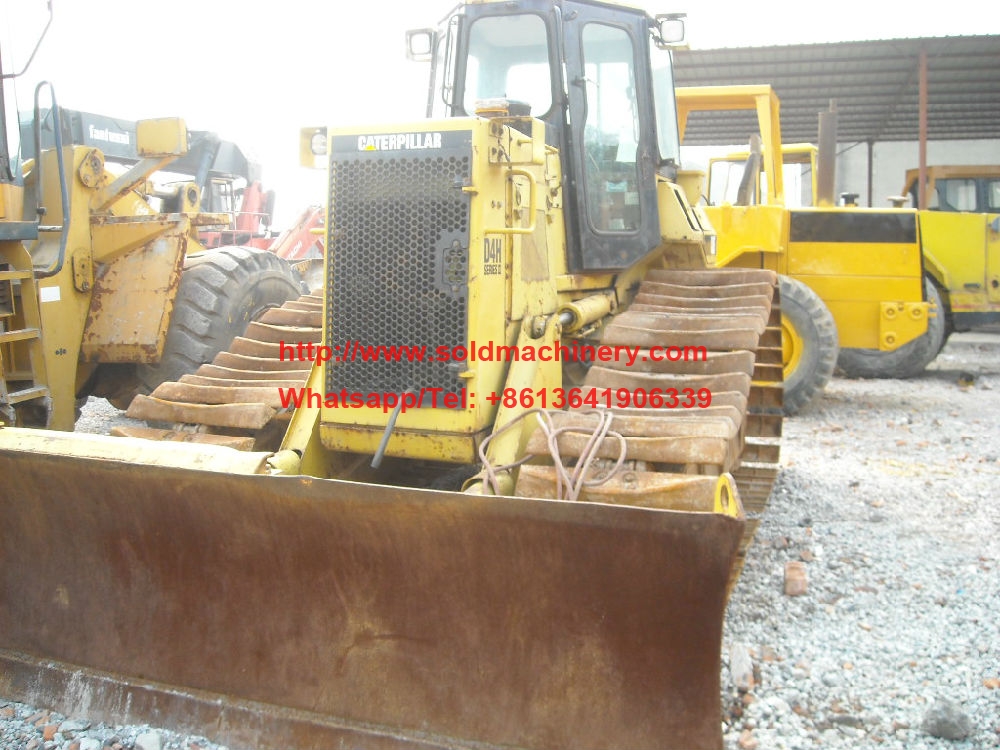

Used CATERPILLAR D4H LGP For Sale

Pictures available:

Details:
  • Category:  Dozer
  • Brand:  CATERPILLAR
  • Model:  D4H
  • Year:  2003
  • SN:
  • price($):  contact us

Description


print this offer


Specification (For reference only)

Engine
Make Caterpillar
Model 3204
Gross Power 99 hp 73.8 kw
Net Power 95 hp 70.8 kw
Power Measured @ 2200 rpm
Displacement 317.3 cu in 5.2 L
Number of Cylinders 4
Aspiration turbocharged
Operational
Operating Weight 22597.4 lb 10250 kg
Fuel Capacity 44.1 gal 167 L
Cooling System Fluid Capacity 7.1 gal 27 L
Engine Oil Capacity 4 gal 15 L
Hydraulic Fluid Capacity 17.8 gal 67.3 L
Final Drives Fluid Capacity 1.6 gal 6 L
Operating Voltage  V
Transmission
Type planetary power shift
Number of Forward Gears 3
Number of Reverse Gears 3
Max Speed - Forward 6.3 mph 10.2 km/h
Max Speed - Reverse 7.6 mph 12.2 km/h
Undercarriage
Ground Pressure 7.1 psi 49.2 kPa
Ground Contact Area 3168 in2 2 m2
Standard Shoe Size 18.1 in 460 mm
Number of Shoes per Side 39
Number of Track Rollers per Side 7
Track Gauge 5.5 ft in 1680 mm
Hydraulic System
Pump type Variable-displacement piston pump senses implement load
Relief Valve Pressure 2700 psi 18615.8 kPa
Pump Flow Capacity 25 gal/min 94.6 L/min
Standard Blade
Width 8.5 ft in 2584 mm
Height 38 in 965 mm
Capacity 2.5 yd3 1.9 m3
Cutting Depth 16.3 in 414 mm
