Used CAT 793D For Sale

Pictures available:

Details:
  • Category:  Truck
  • Brand:  CATERPILLAR
  • Model:  793D
  • Year:  2012
  • SN:
  • price($):  contact us

Description

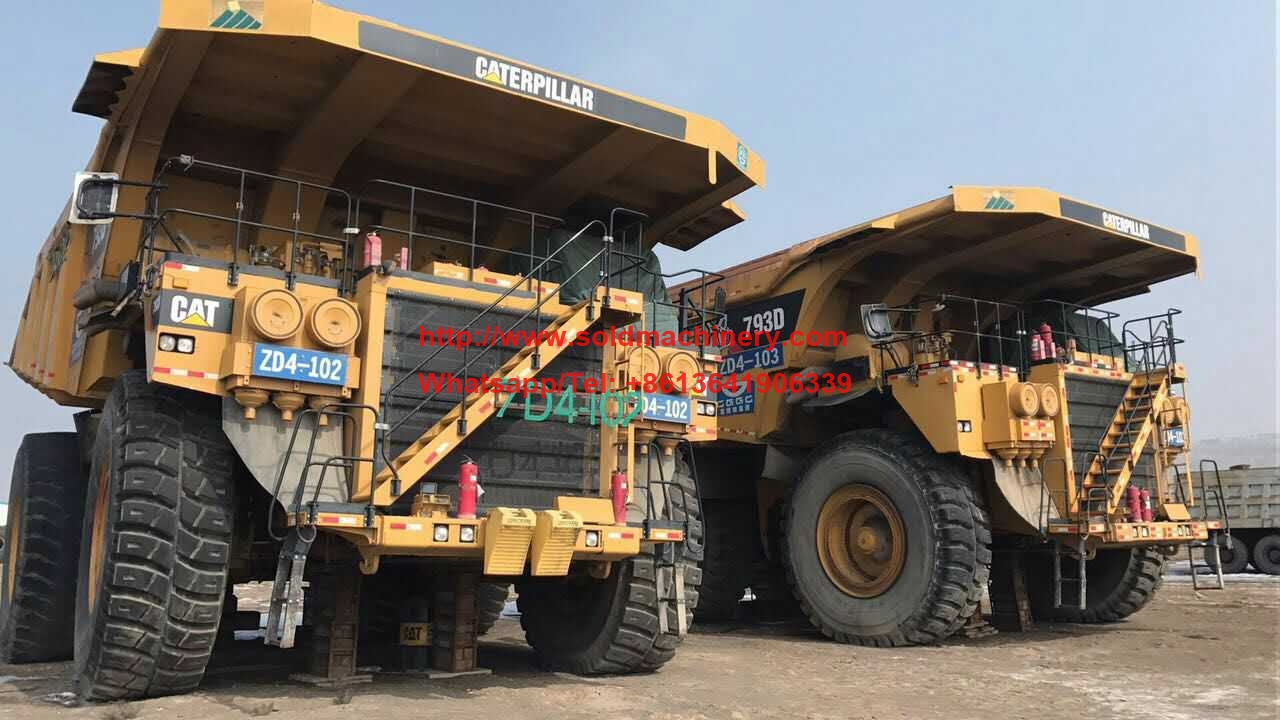

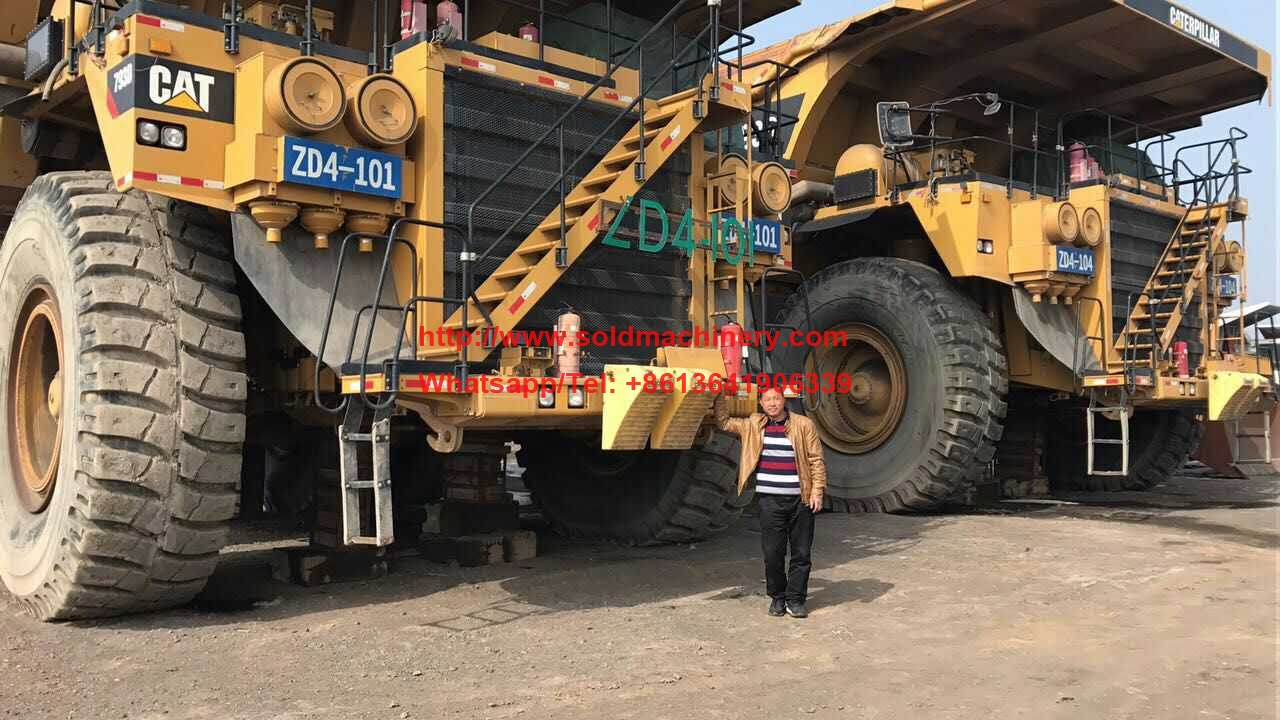

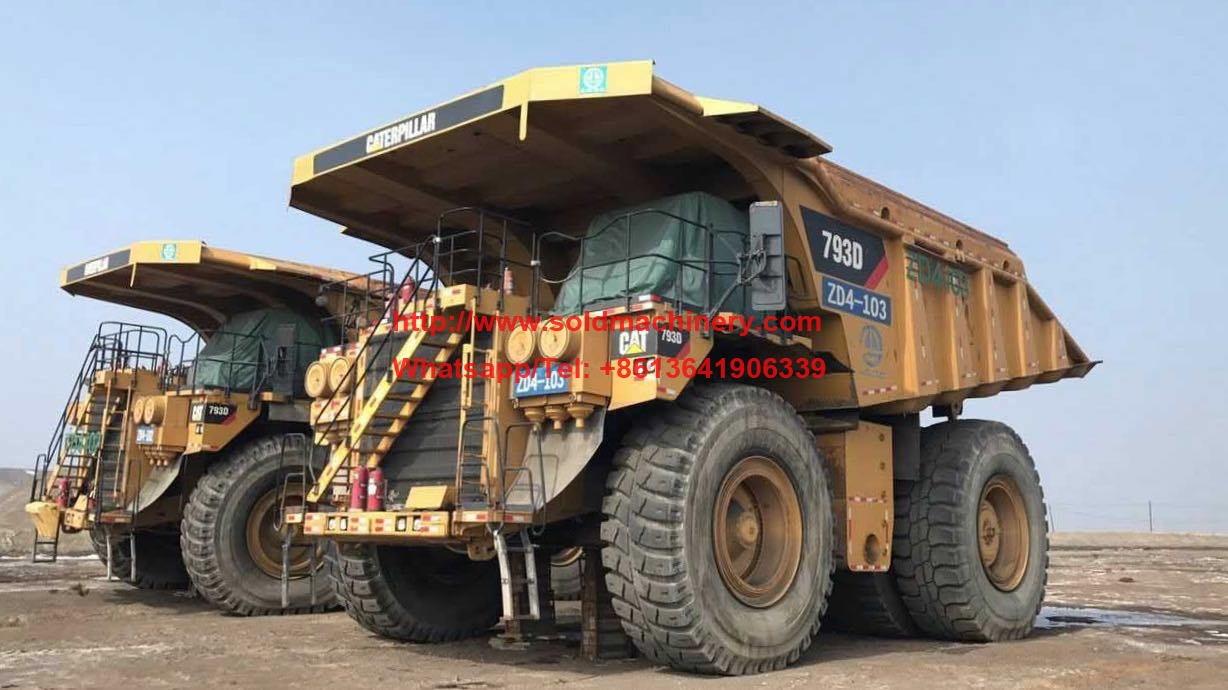

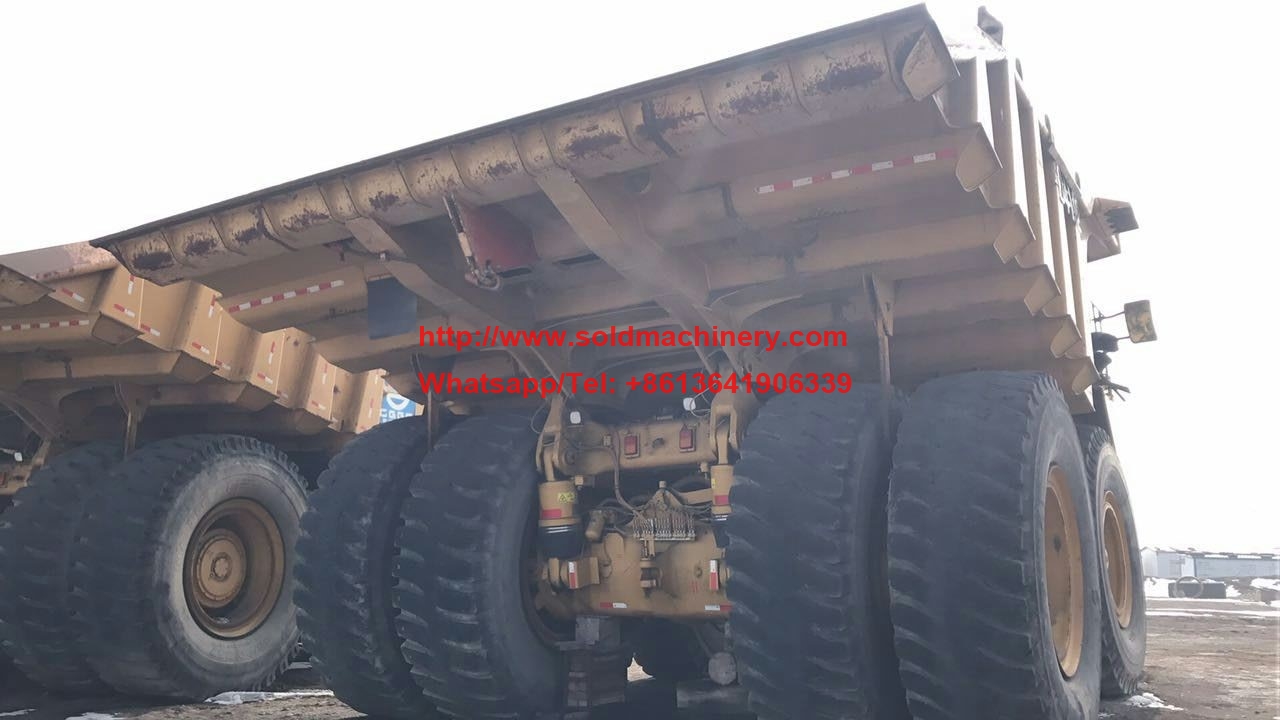

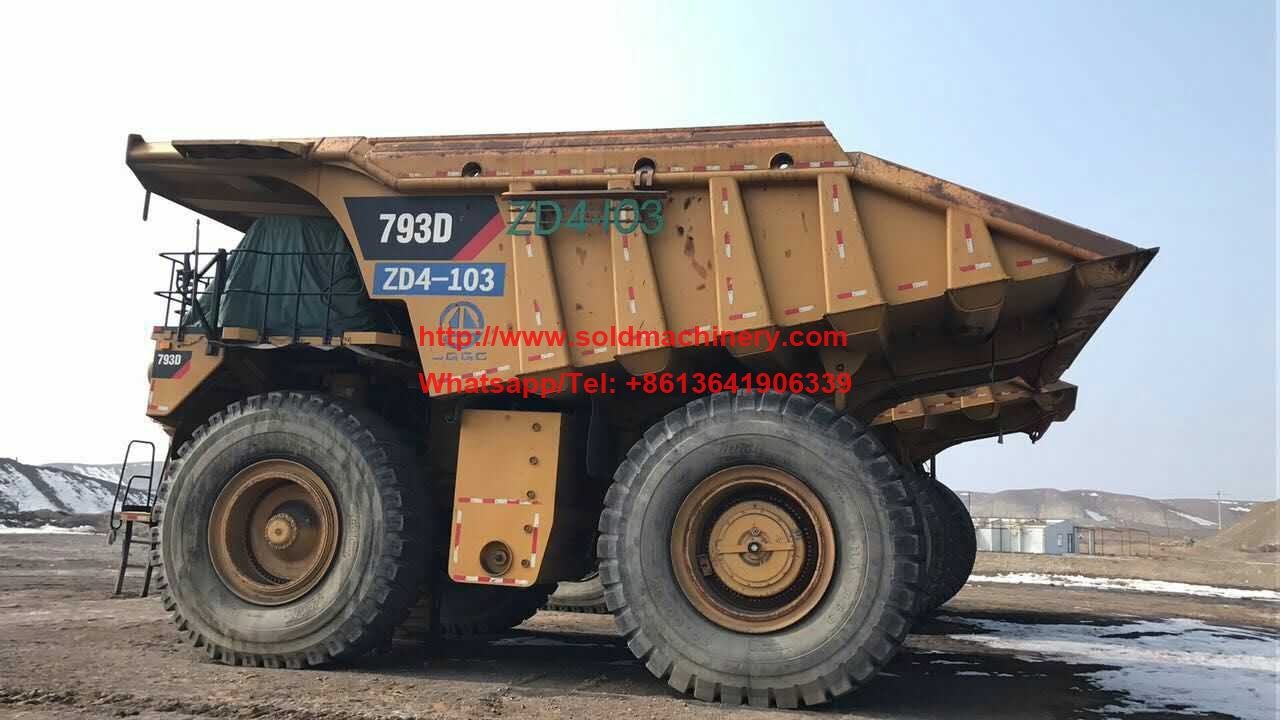

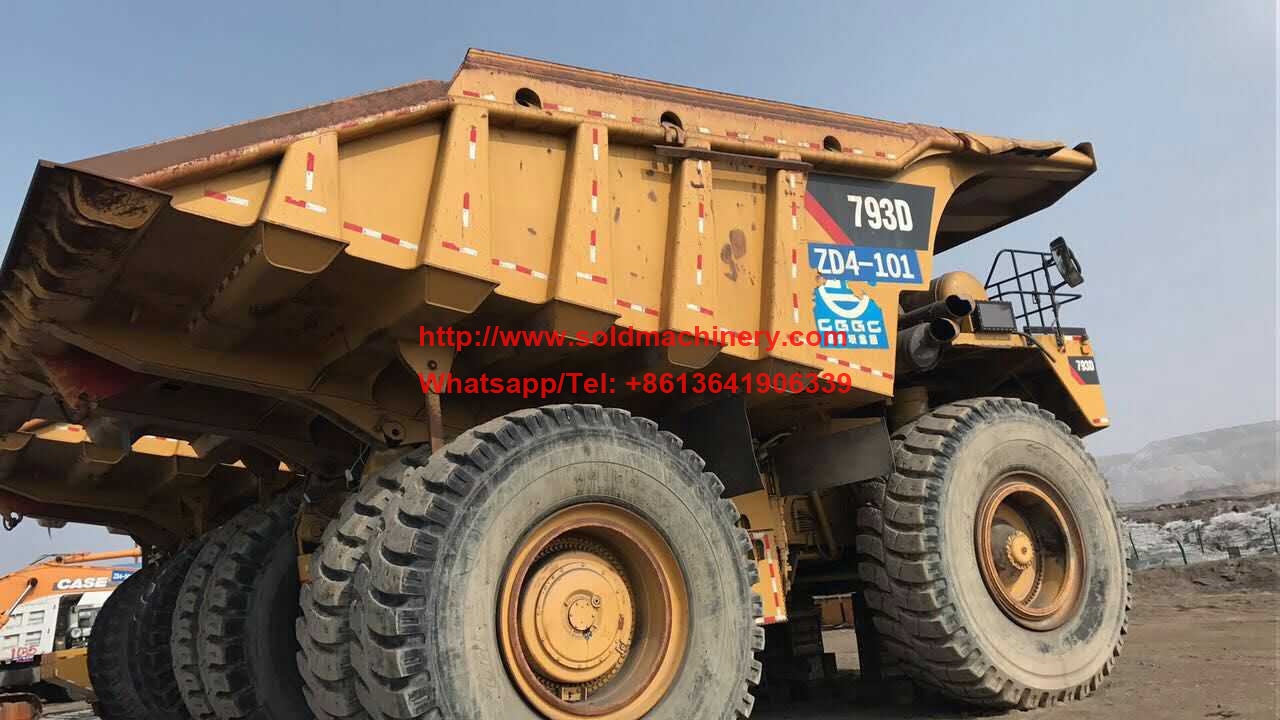

used dump truck CATERPILLAR 793D for sale.

Category : Dump Truck

Brand : Caterpillar

Model : 793D

Year : 2012

This machines have good engine,good driver systems,good tires.In good working conditions.Total 2 units. Any interesting contact us.


print this offer


Specification (For reference only)

Engine
Make Caterpillar
Model 3516B HD EUI
Gross Power 2415 hp 1801 kw
Net Power 2337.4 hp 1743 kw
Power Measured @ 1750 rpm
Displacement 4760 cu in 78 L
Aspiration Turbocharged
Number of Cylinders 16
Operational
Fuel Capacity 1150 gal 4354 L
Cooling System Fluid Capacity 257 gal 973 L
Engine Oil Capacity 70 gal 265 L
Diff and Final Drive Fluid Capacity 70 gal 265 L
Steering System Fluid Capacity 90 gal 341 L
Brake/Hoist System Fluid Capacity 363.2 gal 1375 L
Hydraulic System Fluid Capacity 203 gal 769 L
Operating Voltage 24 V
Alternator Supplied Amperage 75 amps
Tire Size 40.00-R57(E4)
Transmission
Type Six-speed planetary powershift
Number of Gears - Forward 6
Number of Gears - Reverse 1
Max Speed 33.7 mph 54.3 km/h
Weights
Empty Weight 351258 lb 159662 kg
Loaded Weight 846000 lb 383749 kg
Weight Distribution Front - empty 46 %
Weight Distribution Rear - empty 54 %
Weight Distribution Front - loaded 33 %
Weight Distribution Rear - loaded 67 %
Dump
Rated Payload 480000 lb 217724.4 kg
Load Capacity - Struck 126 yd3 96 m3
Load Capacity - heaped 169 yd3 129 m3
Dump Angle 45 degrees
Raise Time 20.3 sec
Lower Time 19.3 sec
Dimensions
Overall Length 42.3 ft in 12862 mm
Overall Width 25.3 ft in 7680 mm
Overall Height 21.3 ft in 6494 mm
Wheelbase 19.4 ft in 5905 mm
Ground Clearance 3.3 ft in 1005 mm
Dump Height 43.1 ft in 13113 mm
Dump Ground Clearance 4.5 ft in 1364 mm
