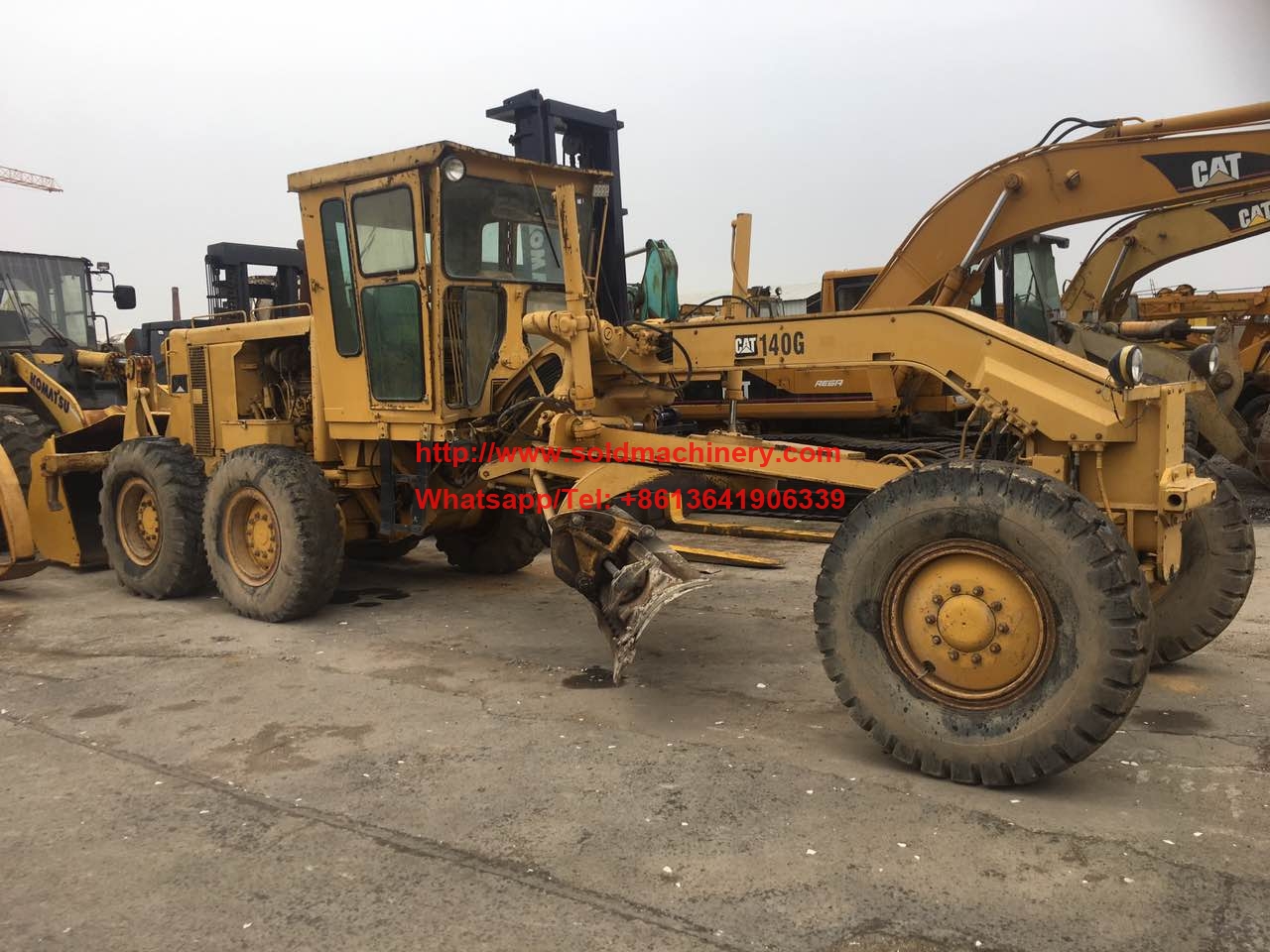

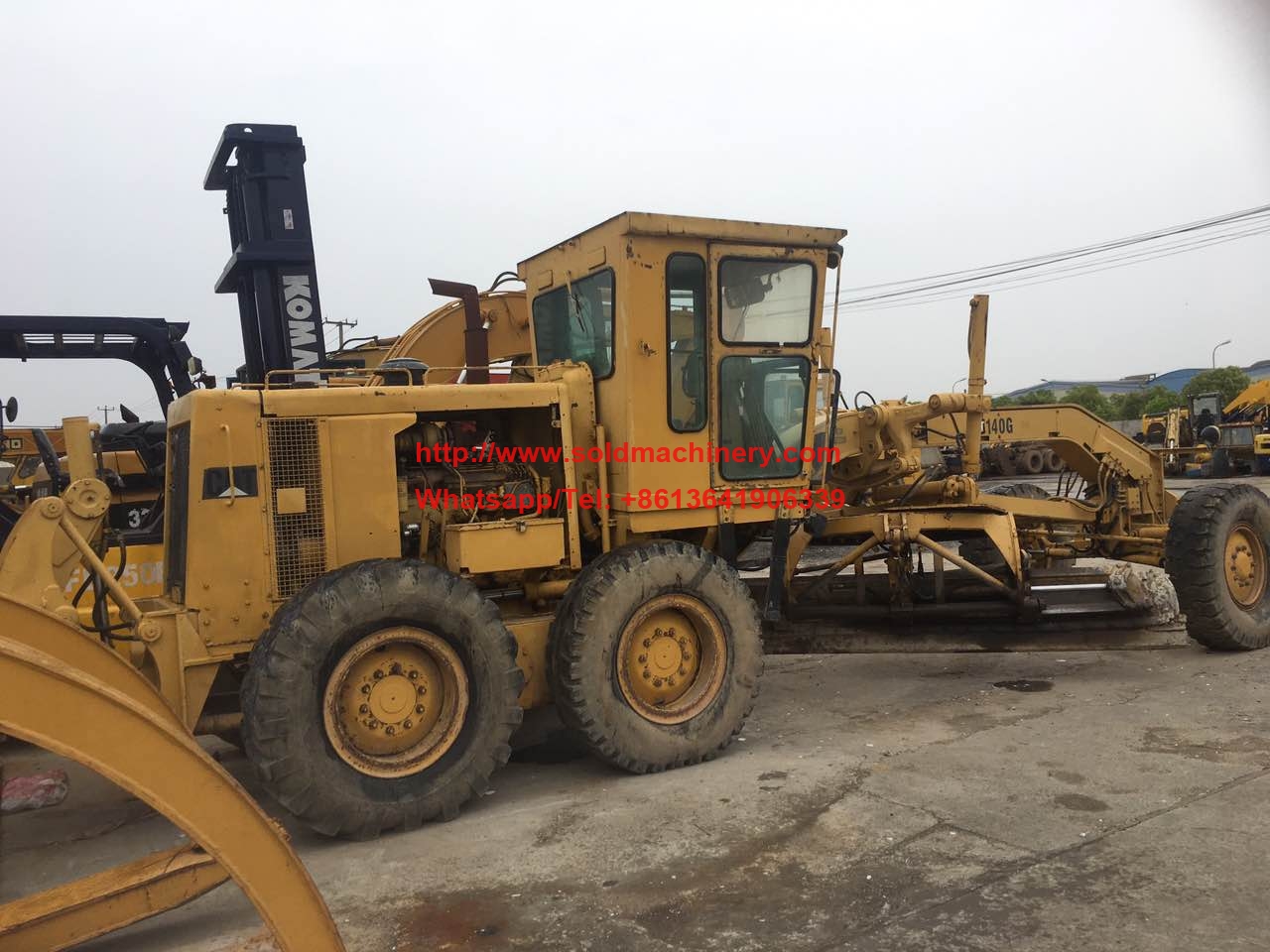

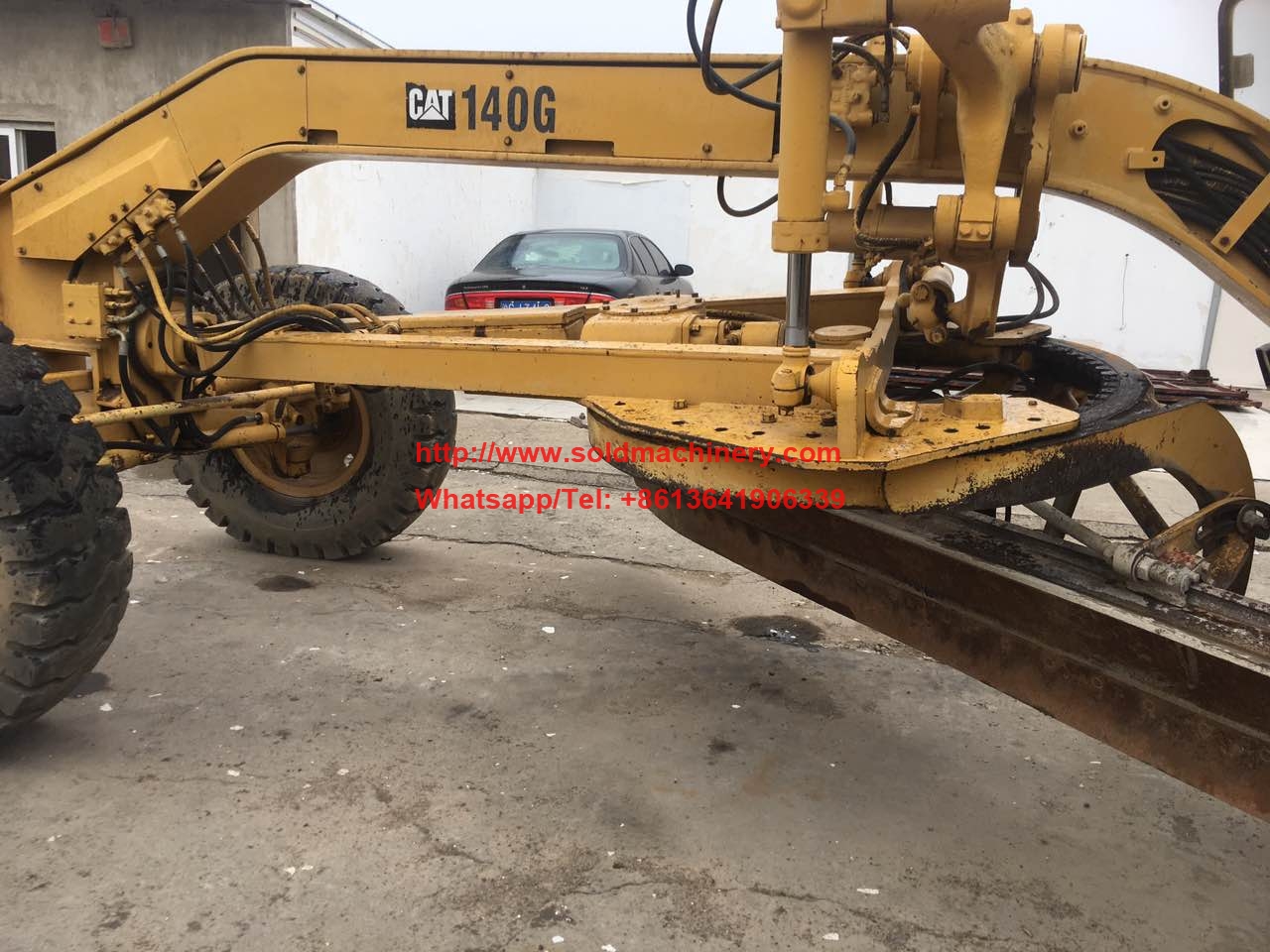

Used CAT 140G used motor grader For Sale

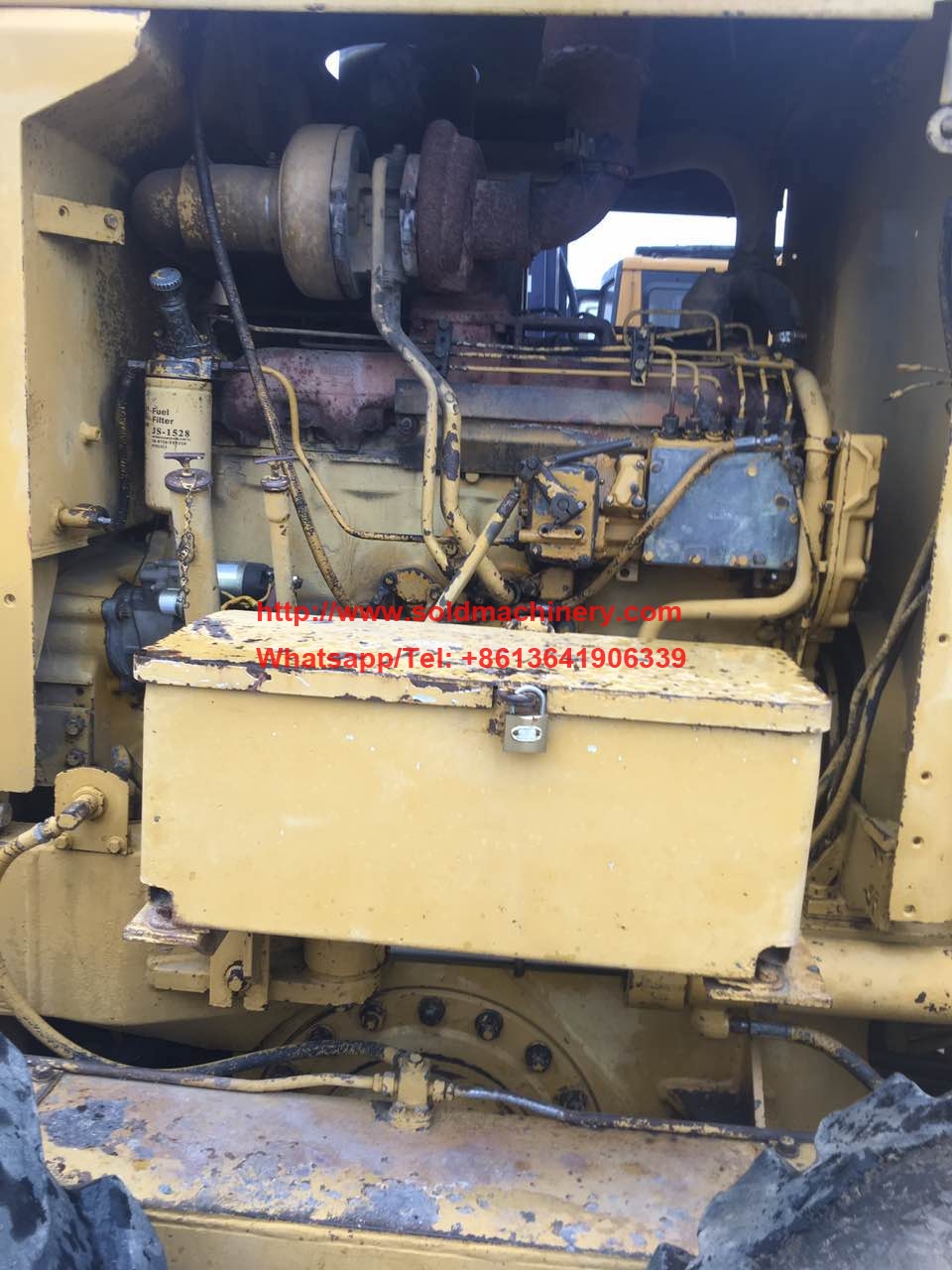

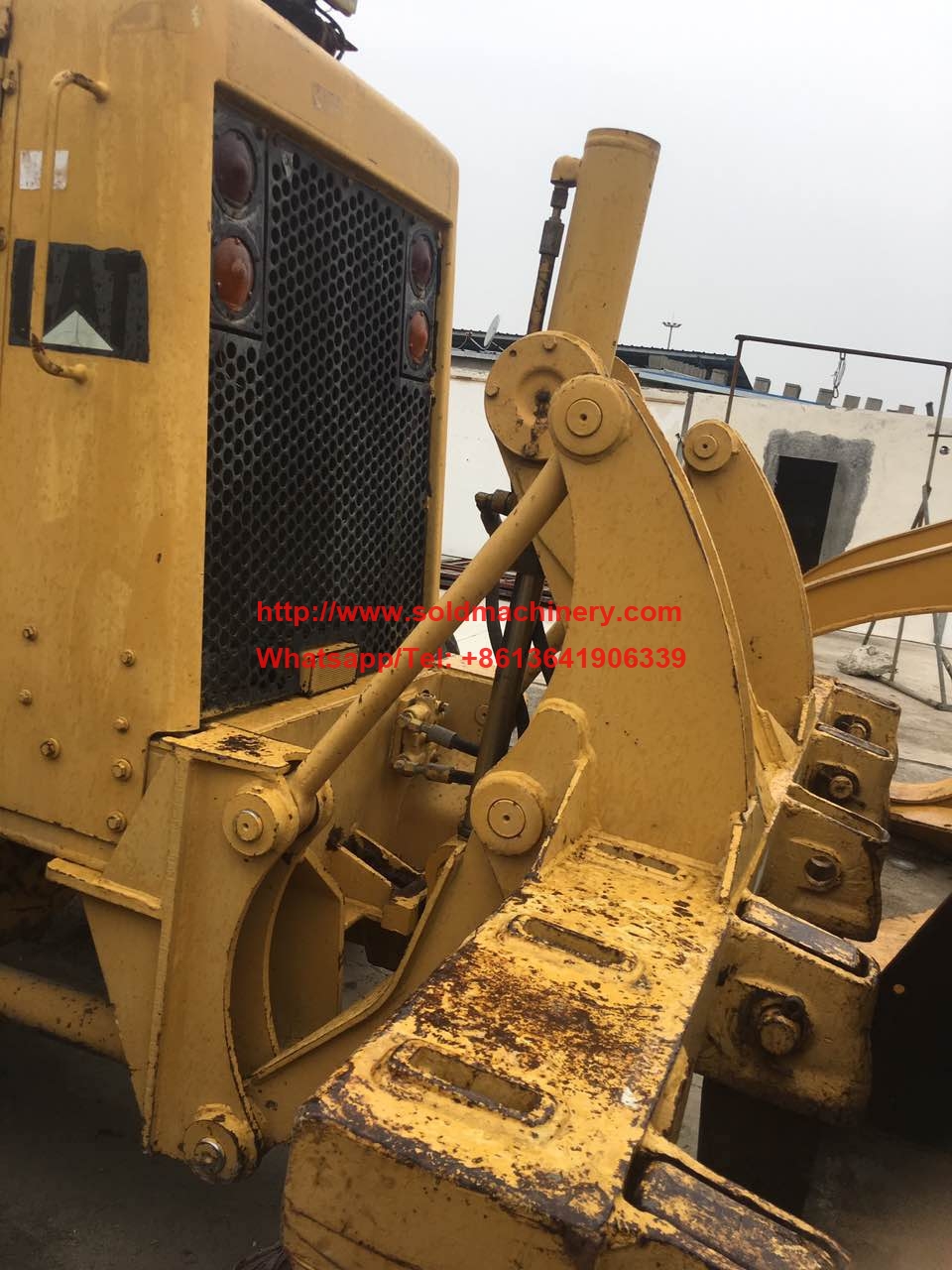

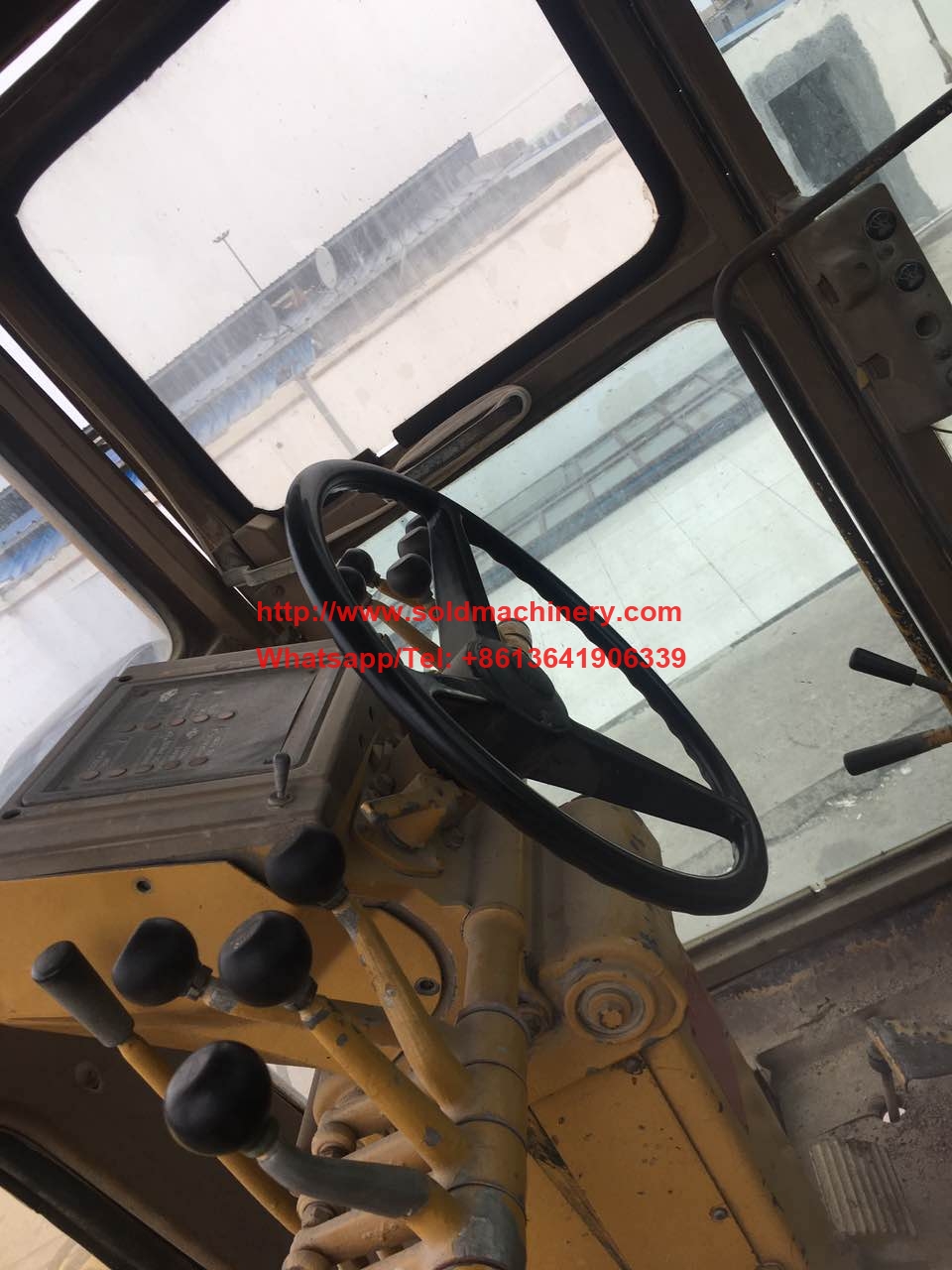

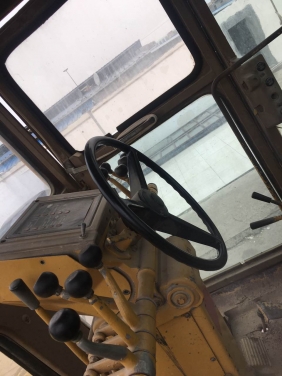

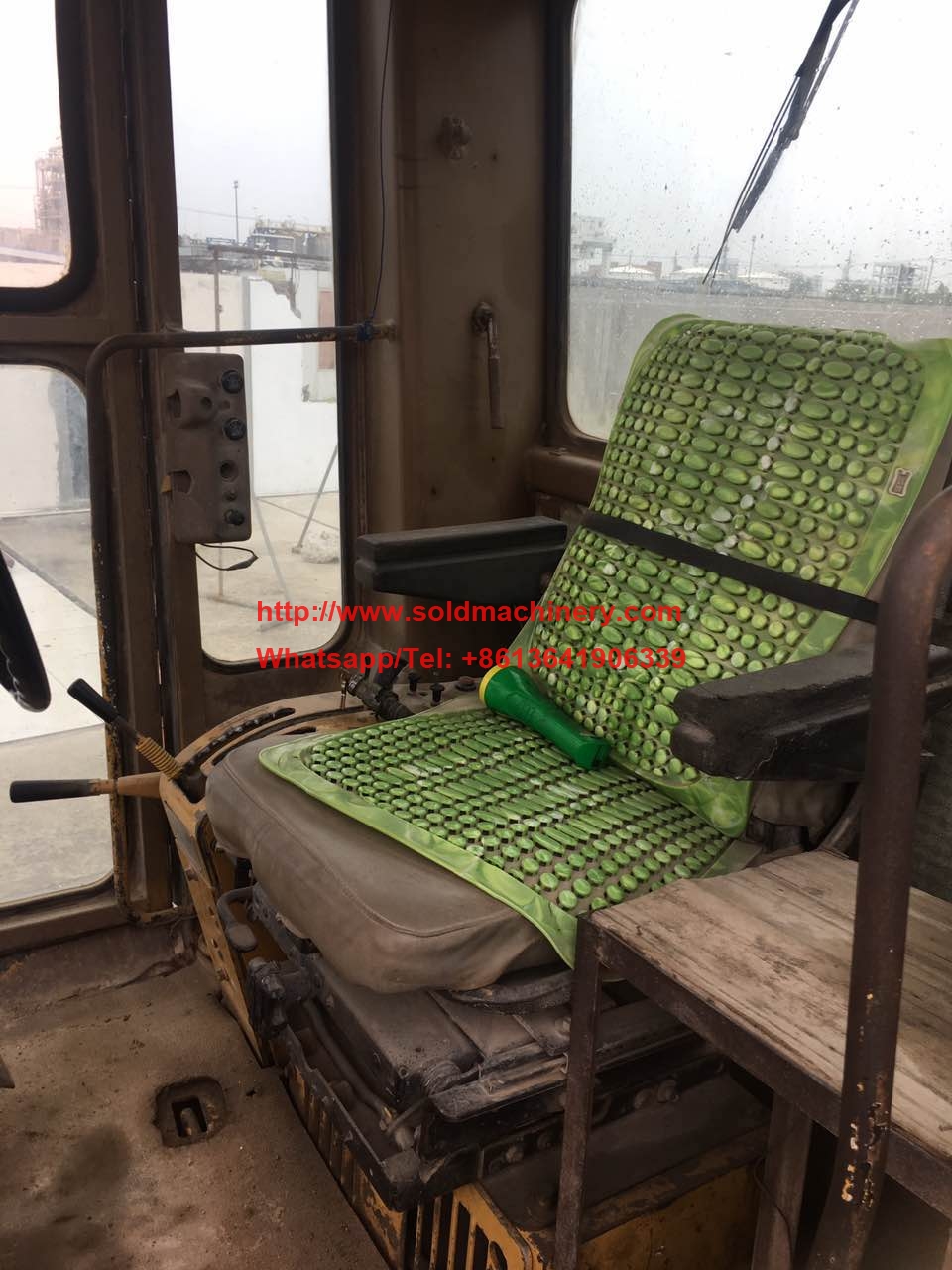

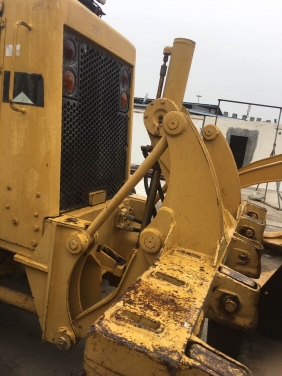

Pictures available:
Details:
- Category: Grader
- Brand: CATERPILLAR
- Model: CAT 140G
- Year: 1994
- SN:
- price($): contact us
Description
This is orginal CATERPILLAR motor grader,
also now we can offer to you CAT 140H, 140K new model,
If you are interested in it, pls contact us asap.
Specification (For reference only)
| Engine | ||
| Make | Caterpillar | |
|
Power Measured |
2200 rpm | |
|
Net Power Gear |
135 hp | 100.7 kw |
| Number of Cylinders | 6 | |
| Max Power | 135 hp | 100.7 kw |
| Displacement | 640.7 cu in | 10.5 L |
| Operational | ||
| Std Operation Weight - Front Axle | 7870.5 lb | 3570 kg |
| Std Operation Weight - Rear Axle | 20128.2 lb | 9130 kg |
| Std Operation Weight - Total | 27998.7 lb | 12700 kg |
| Max Operation Weight - Front Axle | 9986.9 lb | 4530 kg |
| Max Operation Weight - Rear Axle | 21605.3 lb | 9800 kg |
| Max Operation Weight - Total | 31592.2 lb | 14330 kg |
| Fuel Capacity | 74.8 gal | 283 L |
| Oil System Fluid Capacity | 7.7 gal | 29 L |
| Cooling System Fluid Capacity | 12.4 gal | 47 L |
| Hydrauilc System Fluid Capacity | 20.1 gal | 76 L |
| Transmission Fluid Capacity | 23 gal | 87 L |
| Tandem Case Fluid Capacity (each) | 16.9 gal | 64 L |
| Operating Voltage | 24 V | |
| Alternator Supplied Amperage | 19 amps | |
| Transmission | ||
| Type | Cat-built direct drive power shift | |
| Number of Gears - Forward | 6 | |
| Number of Gears - Reverse | 6 | |
| Max Speed - Forward | 25.5 mph | 41 km/h |
| Max Speed - Reverse | 25.5 mph | 41 km/h |
| Steering | ||
| Articulation L/R | 50 degrees | |
| Turning Radius | 24 ft in | 7.3 m |
| Front Axle | ||
| Wheel Lean | 18 degrees | |
| Oscillation - Total | 32 degrees | |
| Ground Clearance | 2 ft in | 610 mm |
| Hydraulic System | ||
| Pump Type | closed-center, constant-pressure system w/ variable displacement piston | |
| Pump Flow | 51 gal/min | 193 L/min |
| Relief Valve Pressure | 2150 psi | 14823.7 kPa |
| Moldboard | ||
| Moldboard Width | 12 ft in | 3650 mm |
| Moldboard Height | 24 in | 610 mm |
| Moldboard Thickness | 0.87 in | 22 mm |
| Max Depth of Cut | 17.7 in | 450 mm |
| Side Shift Left | 26.4 in | 670 mm |
| Side Shift Right | 20.5 in | 520 mm |
| Circle | ||
| Diameter | 60.2 in | 1530 mm |
| Rotation | 360 degrees | |
| Max Reach Outside Tires - Left | 72 in | 1830 mm |
| Max Reach Outside Tires - Right | 73.6 in | 1870 mm |
| Max Lift Above Ground | 17.2 in | 438 mm |
| Blade Tip Angle - Front | 90 degrees | |
| Blade Tip Angle - Rear | 90 degrees | |
