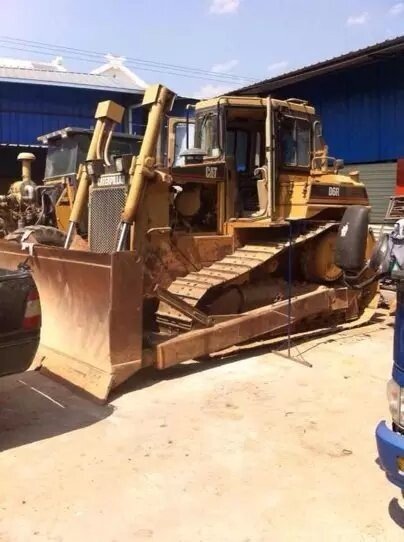

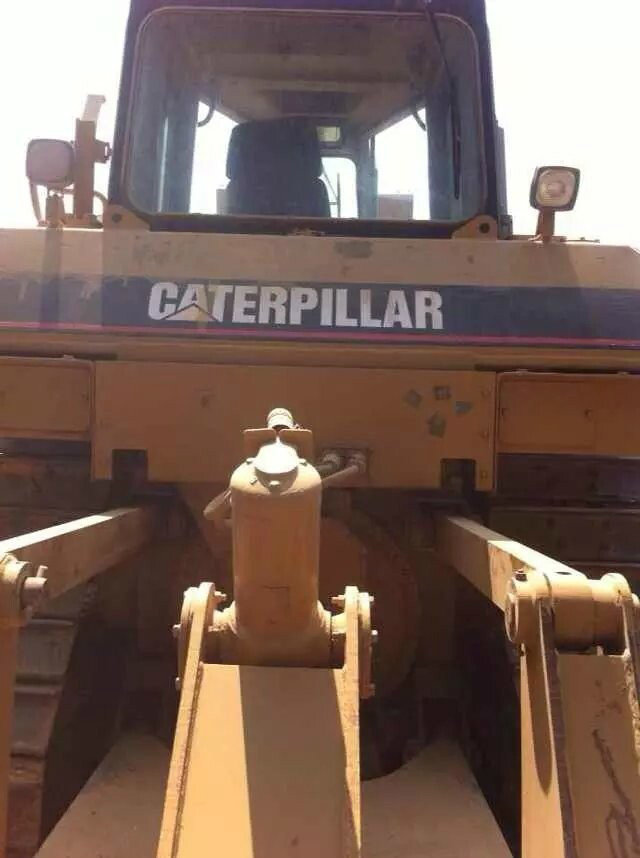

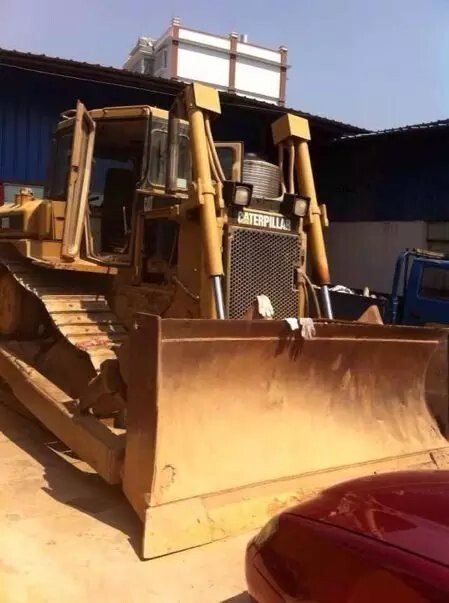

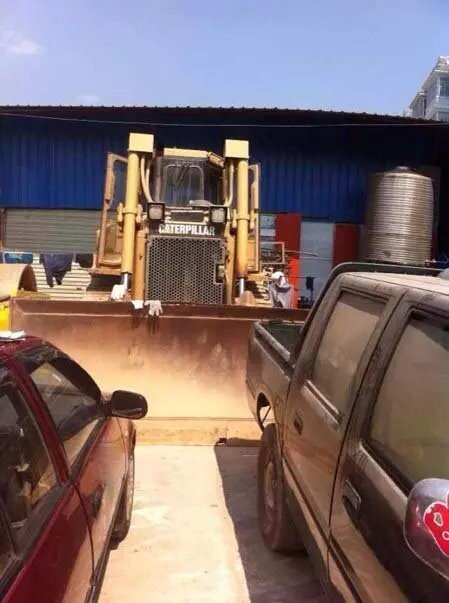

Used Catperpillar CAT D6R Crawler Dozer Crawler bulldozer For Sale

Details:

Description

Cat : Crawler Tractor Bulldozer,

Brand : Caterpillar

Model : CAT D6R

This machine is in a good work condition and ready for sale

Specification (For reference only)

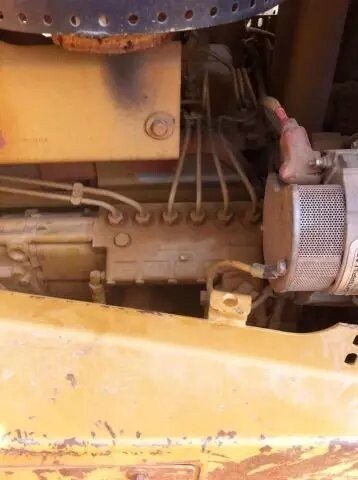

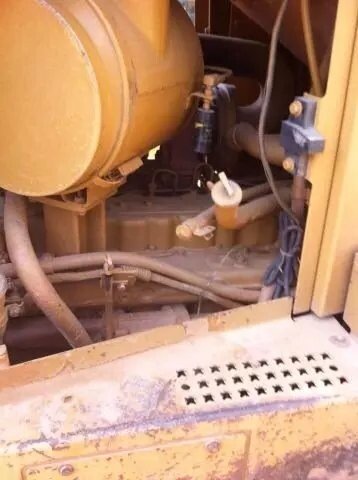

Engine
Make	Caterpillar
Model	3306
Gross Power	179 hp	133.5 kw
Net Power	165 hp	123 kw
Power Measured @	1900 rpm
Displacement	638 cu in	10.5 L
Number of Cylinders	6
Aspiration	Turbocharged
Operational
Operating Weight	40000 lb	18143.7 kg
Fuel Capacity	101.2 gal	383 L
Cooling System Fluid Capacity	19.5 gal	74 L
Engine Oil Capacity	7.3 gal	27.5 L
Hydraulic Fluid Capacity	20.1 gal	76 L
Powertrain Fluid Capacity	40.9 gal	155 L
Final Drives Fluid Capacity	3.6 gal	13.5 L
Operating Voltage	24 V
Alternator Supplied Amperage	70 amps
Transmission
Type	Power Shift
Number of Forward Gears	3
Number of Reverse Gears	3
Max Speed - Forward	7.4 mph	11.9 km/h
Max Speed - Reverse	9.5 mph	15.3 km/h

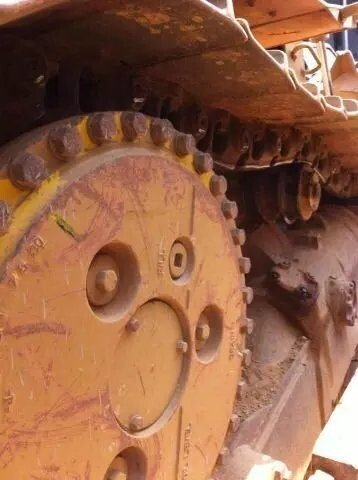

Undercarriage
Ground Pressure	8.9 psi	61.6 kPa
Ground Contact Area	4518 in2	2.9 m2
Standard Shoe Size	22 in	560 mm
Number of Shoes per Side	39
Number of Track Rollers per Side	6
Track Pitch	8 in	203 mm
Track Gauge	6.2 ft in	1880 mm
Hydraulic System
Pump type	Piston Style
Relief Valve Pressure	2800 psi	19305.3 kPa
Pump Flow Capacity	50.2 gal/min	190 L/min
