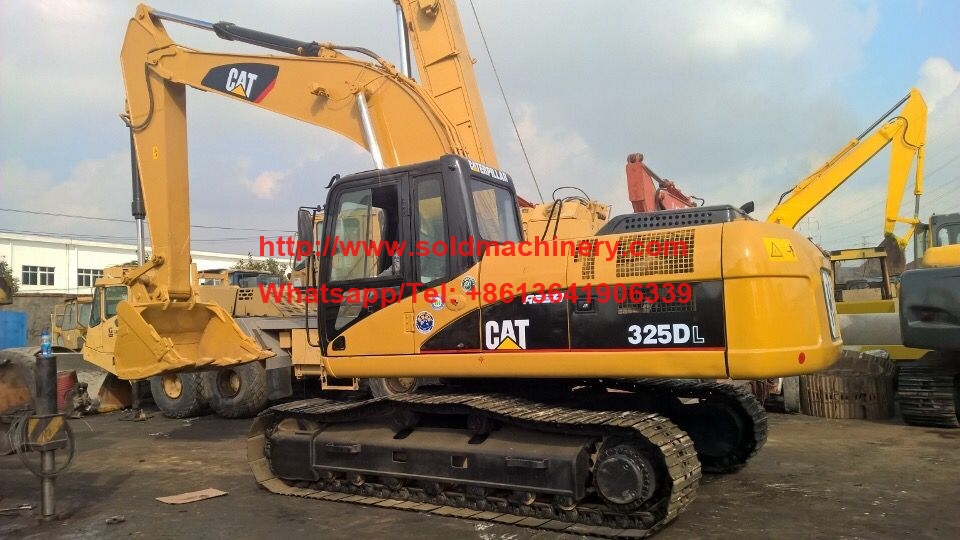

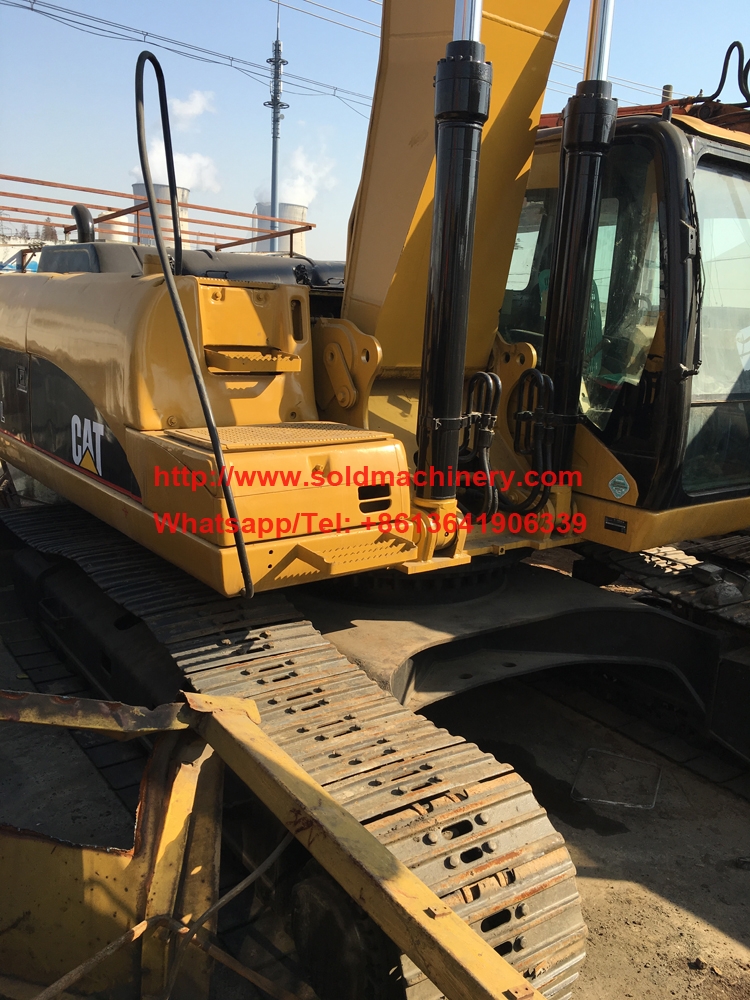

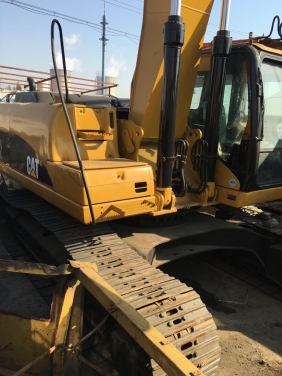

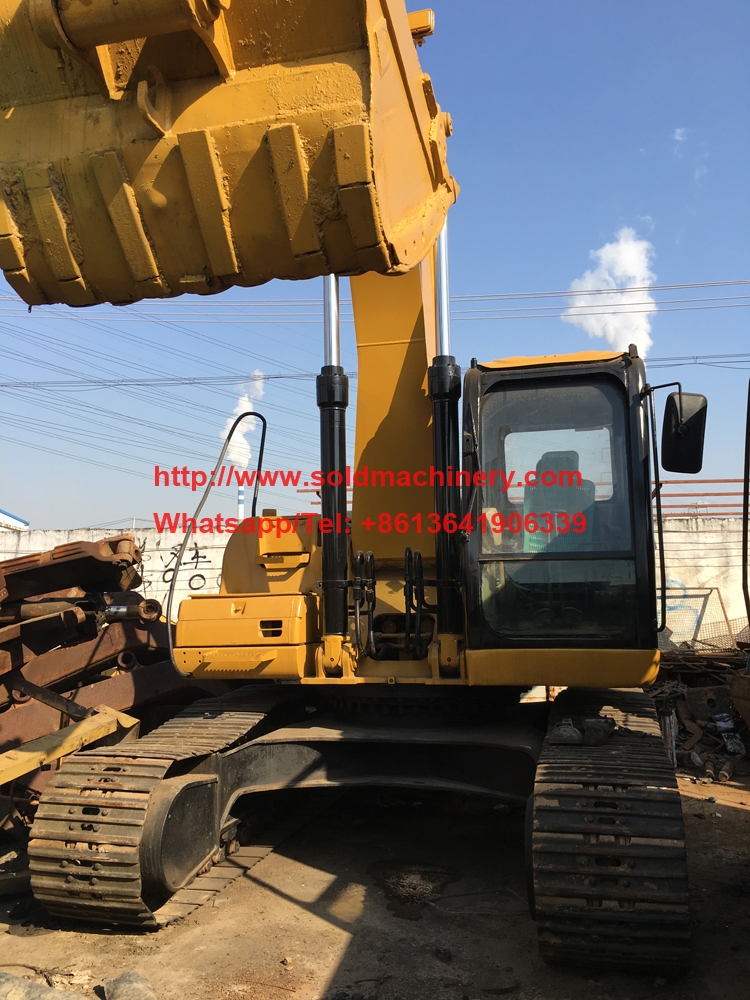

Used CATERPILLAR 325DL For Sale

Pictures available:

Details:
  • Category:  Excavator
  • Brand:  CATERPILLAR
  • Model:  CAT325DL
  • Year:  2012
  • SN:
  • price($):  contact us

Description


print this offer


Specification (For reference only)

Engine
Make Caterpillar
Model C7 ACERT
Net Power 190 hp 141.7 kw
Power Measured @ 1800 rpm
Displacement 440 cu in 7.2 L
Operational
Operating Weight 64460 lb 29240 kg
Fuel Capacity 137 gal 520 L
Cooling System Fluid Capacity 7.9 gal 30 L
Hydrauilc System Fluid Capacity 82 gal 310 L
Engine Oil Capacity 7.9 gal 30 L
Swing Drive Fluid Capacity 2.6 gal 10 L
Operating Voltage 24 V
Alternator Supplied Amperage 65 amps
Hydraulic System Relief Valve Pressure 5221 psi 36000 kPa
Hydraulic Pump Flow Capacity 124.2 gal/min 470 L/min
Swing Mechanism
Swing Speed 10.2 rpm
Swing Torque 60628 lb ft 82200 Nm
Undercarriage
Number of Shoes per Side 50
Shoe Size 32 in 800 mm
Number of Carrier Rollers per Side 2
Number of Track Rollers per Side 9
Max Travel Speed 3.3 mph 5.3 km/h
Drawbar Pull 55977 lb 249 kN
Track Gauge 8.5 ft in 2590 mm
Buckets
Reference Bucket Capacity 1.8 yd3 1.4 m3
Maximum Bucket Capacity 2.6 yd3 2 m3
