Used Ex200-1 For Sale

Details:

Description

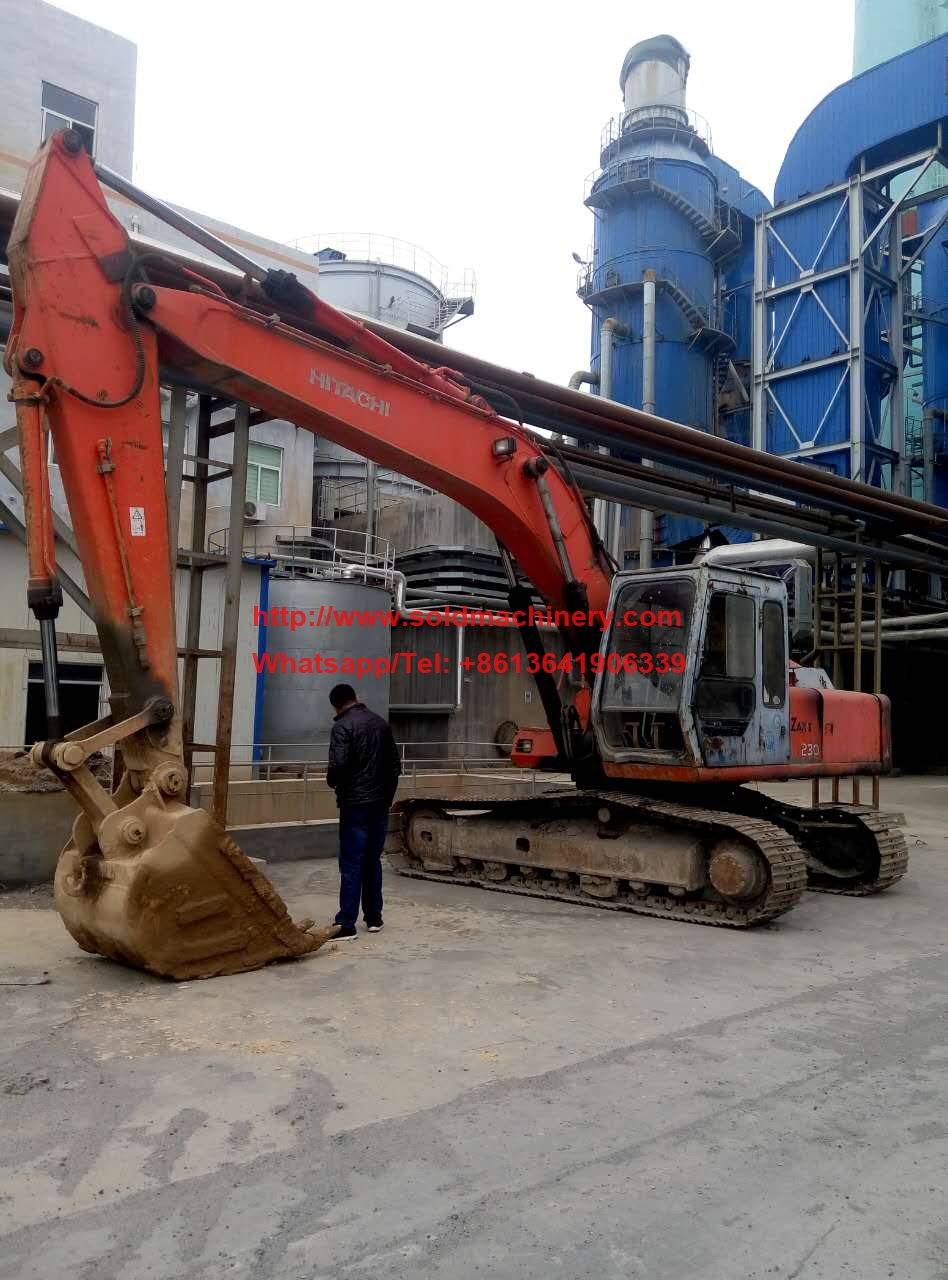

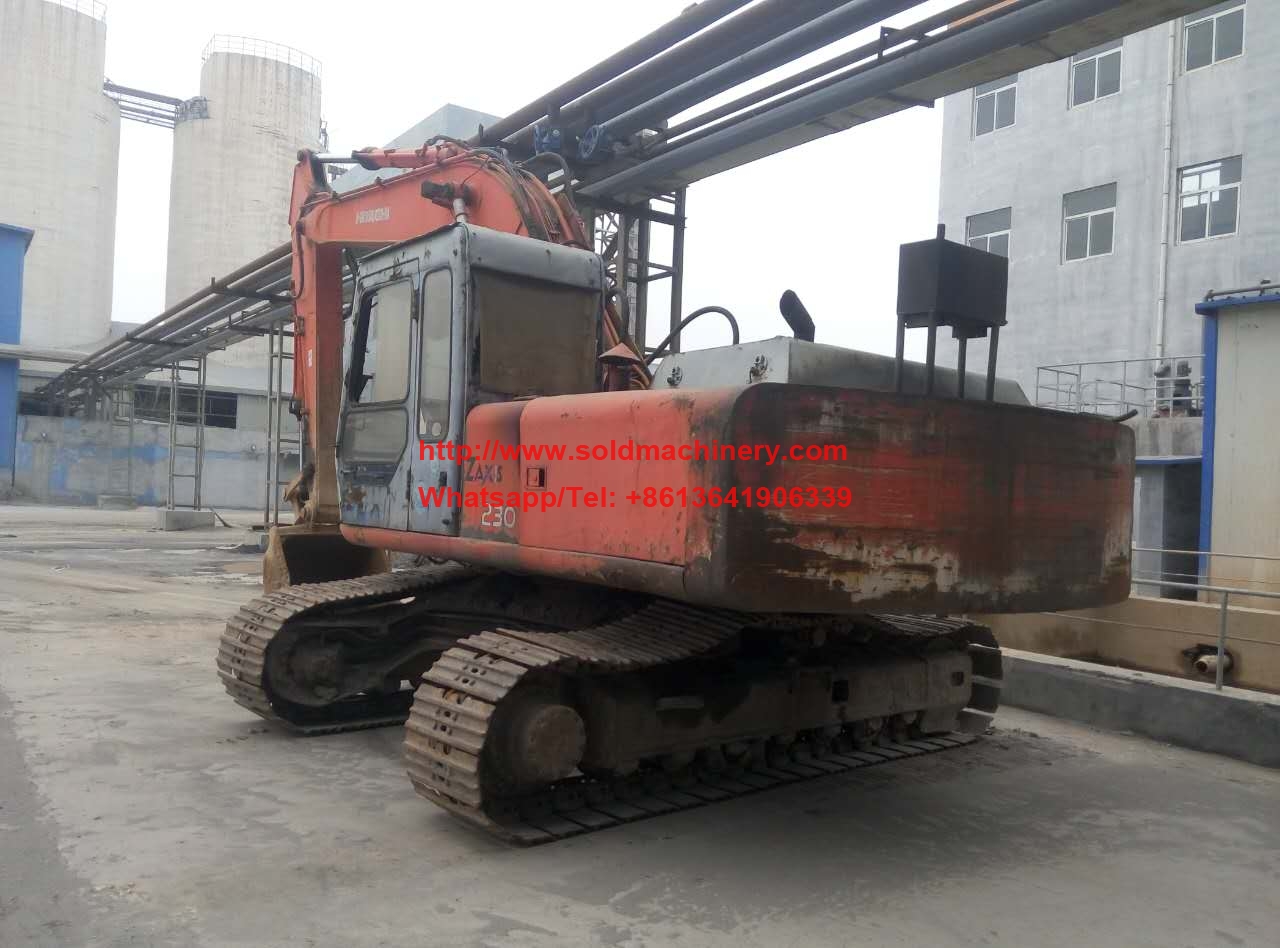

Hitachi ex200-1LC ready for sale, very good working condition,

Specification (For reference only)

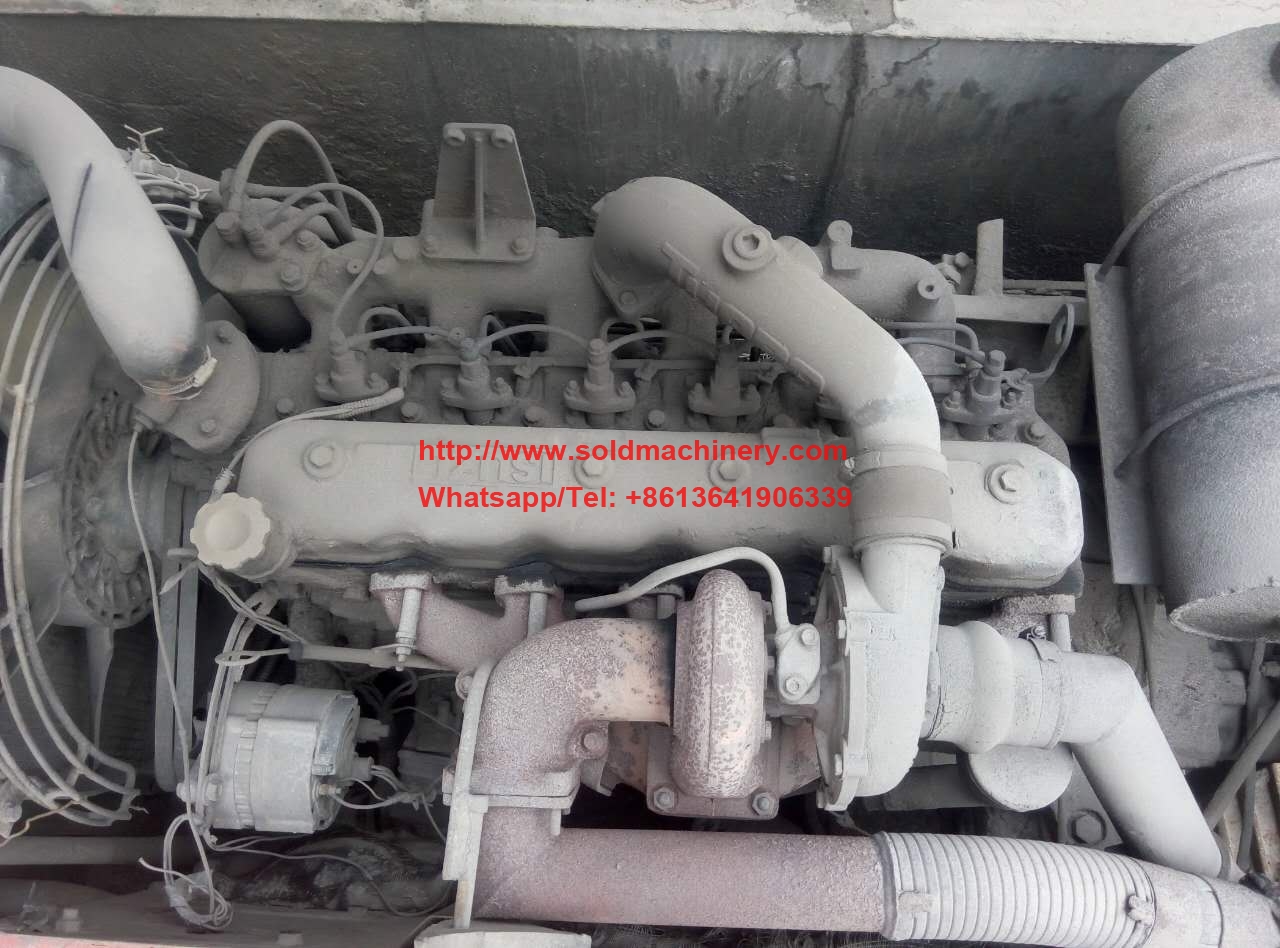

Engine
Make	Hino
Model	H07C-TD
Net Power	156 hp	116.3 kw
Power Measured @	2000 rpm
Displacement	411 cu in	6.7 L
Torque Measured @	1600 rpm
Max Torque	455.8 lb ft	618 Nm
Number of Cylinders	6
Aspiration	Turbocharged
Operational
Operating Weight	52500 lb	23813.6 kg
Fuel Capacity	100.4 gal	380 L
Cooling System Fluid Capacity	6.1 gal	23 L
Hydrauilc System Fluid Capacity	63.1 gal	239 L
Engine Oil Capacity	6.9 gal	26 L
Swing Drive Fluid Capacity	3.5 gal	13.2 L
Alternator Supplied Amperage	40 amps
Hydraulic System Relief Valve Pressure	4980 psi	34335.9 kPa
Hydraulic Pump Flow Capacity	107.8 gal/min	408 L/min
Swing Mechanism
Swing Speed	13.5 rpm

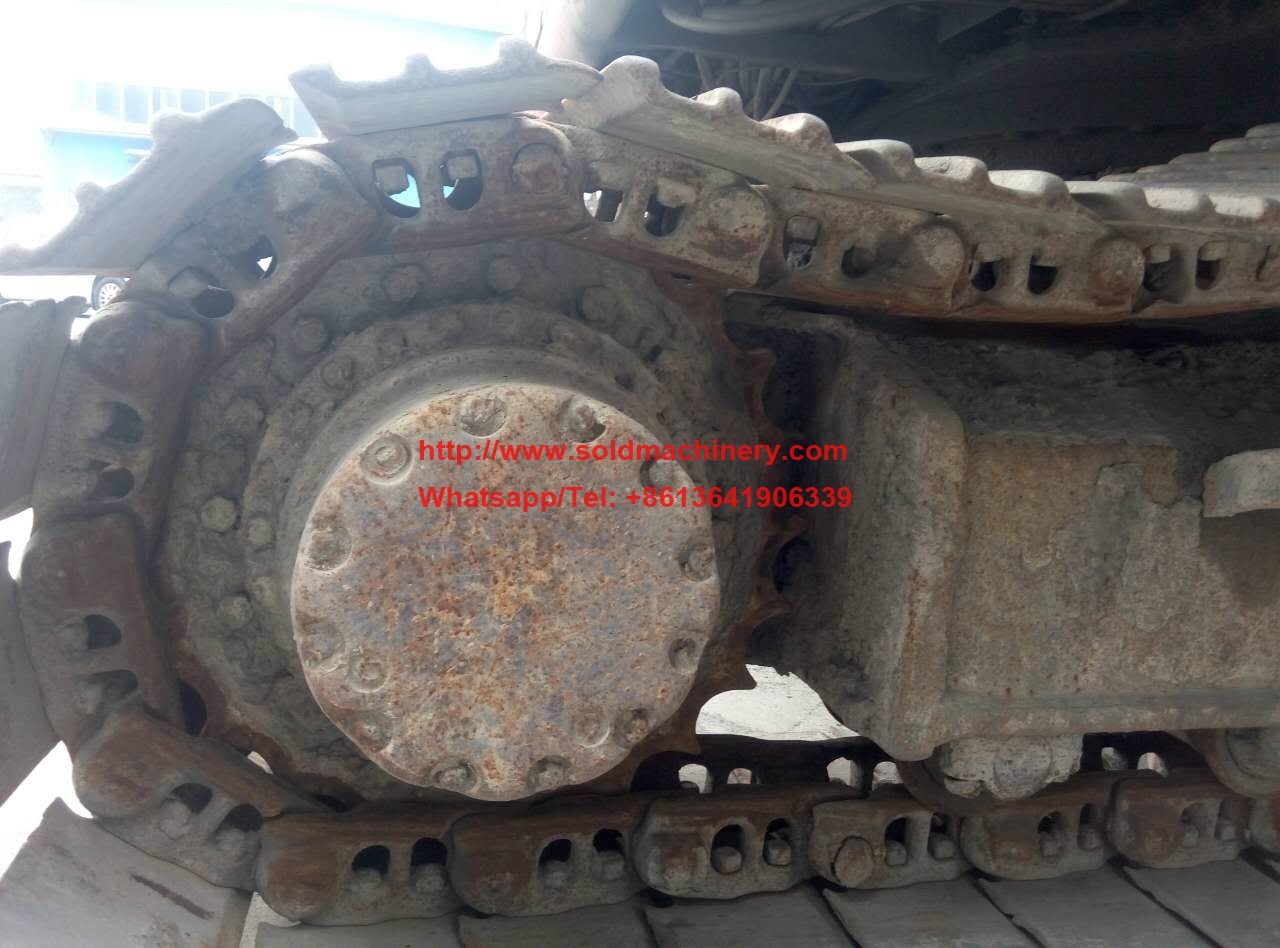

Undercarriage
Number of Shoes per Side	51
Shoe Size	31.5 in	800 mm
Number of Carrier Rollers per Side	2
Number of Track Rollers per Side	9
Ground Pressure	5.1 psi	35.3 kPa
Max Travel Speed	3.4 mph	5.5 km/h
Track Gauge	8.5 ft in	2590 mm
Buckets
Reference Bucket Capacity	1.3 yd3	1 m3
Minimum Bucket Capacity	1 yd3	0.8 m3
Maximum Bucket Capacity	1.8 yd3	1.4 m3
